Flux-cored arc welding (FCAW) is a versatile method that uses a continuously fed consumable tubular electrode containing flux. The process is widely appreciated for its deep penetration and high deposition rate.
Flux-cored arc welding combines the qualities of shielded metal arc welding with the efficiency of a continuous welding process, making it ideal in construction and repair work. Suited to indoor and outdoor operations, FCAW excels in environments with windy conditions where gas-shielded methods might fail.
As FCAW doesn’t rely on external shielding gases, it offers improved portability and is beneficial when carrying impractical gas cylinders. The technique is known for producing less welding fumes and allows for various materials and thicknesses to be welded, enhancing its adaptability to various industrial applications. Its ease of use and speed make it a standard choice for many welders, keeping FCAW prominent in the welding field.
What Is Flux Cored Arc Welding (FCAW)?
A hero often flies under the radar in metal construction and repair, yet it’s fundamental in creating solid and durable structures. This hero is Flux Cored Arc Welding (FCAW), a distinctive and efficient method that both beginners and seasoned welding professionals can leverage. Remarkably versatile, it presents unique advantages that make it stand out in the welding process lineup. We’re about to dive into what FCAW is, understand its core principles, and compare its benefits to other welding techniques.
Definition And Process
FCAW is a semi-automatic or automatic arc welding process characterized by the unique use of a flux-cored wire that releases a shielding gas as it melts. This is crucial to protect the weld pool from contaminants in the atmosphere. FCAW merges the simplicity of MIG welding with the added benefit of a flux core, meaning welding can be free from slags and more efficient outdoors. Here’s a brief rundown on how this process unfolds:
- Power Supply: The welding machine provides a continuous electrical current to maintain the heat necessary for the weld.
- Flux-Cored Wire: Unlike solid wire used in other processes, the flux-cored wire contains materials that produce shielding gas and slag during the welding.
- Shielding: The flux core within the wire melts and forms a protective gas shield around the weld, reducing the likelihood of oxidation and contamination.
- Arc Creation: An arc is established between the workpiece and the wire, melting the metal and allowing the welder to create a solid, robust joint.
Comparison With Other Welding Methods
Each welding technique comes with its own set of strengths and optimal use cases. Here’s a concise comparison between FCAW and other standard welding methods:
| Method | Advantages | Disadvantages | Best Used For |
|---|---|---|---|
| FCAW |
|
| Construction, heavy equipment repair, shipbuilding |
| MIG Welding |
|
| Automotive repair, home projects, robotics |
| TIG Welding |
|
| Artwork, critical welds, pipefitting |
| Stick Welding |
|
| Industrial maintenance, construction, field repairs |
Each welding method possesses its expertise. Still, FCAW often rises to the top when welders need a swift, stout, and adaptable solution to challenging projects that may involve dirtier metals or require higher deposition rates. With the capacity to withstand windy conditions and less sensitivity to surface contaminants, Flux Cored Arc Welding shows its superiority in numerous industrial and outdoor scenarios.
Credit: www.schuettemetals.com
Self-shielded FCAW
The world of welding brims with diverse techniques and one such method that stands out is self-shielded flux-cored arc welding (FCAW-S). This unique approach combines the convenience of stick welding with the efficiency of flux-cored welding processes. FCAW-S doesn’t require an external shielding gas, making it an ideal choice for outdoor applications where environmental factors could disperse a gas shield.
Self-shielded FCAW harnesses a continuously fed electrode with flux at its core that, upon burning, generates its protective gas shield. This flux exudes in the arc, creating a gas bubble that guards the weld pool from atmospheric contamination. The technique’s versatility allows welders to excel in environments unsuitable for other types of welding.
Advantages Of Self-shielded FCAW
- Portability: Eliminates the need for gas cylinders, making for lightweight and adaptable welding setups.
- Good penetration: Achieves deep penetration for solid welds, even on thicker materials.
- All-position welding: Capable of handling various positions required in complex welds.
- Wind resistance: Ideal for outdoor or windy conditions where shielding gases could be dispersed.
- Speed: Faster than traditional stick welding due to continuous wire feed.
Limitations Of Self-shielded FCAW
- Slag removal: Requires cleaning to remove slag after welding.
- Visibility: Generates smoke that can reduce visibility during the welding process.
- Surface preparation: Paint, rust, or other contaminants must be removed to ensure quality welds.
- Wire feeder: A reliable wire feeding system is required to prevent interruptions and maintain efficiency.
Suitable Applications For Self-shielded FCAW
| Application | Description |
|---|---|
| Construction | Durable against harsh conditions and ideal for constructing buildings and infrastructure. |
| Shipbuilding | Facilitates speedy repairs and assembly due to its portability and intense penetration. |
| Field Repairs | Perfect for on-site repairs in maintenance and repair operations, especially in remote locations. |
| Farm Equipment | Easily tackles welding tasks on heavy and dirty farm equipment. |
Self-shielded FCAW brings forth a blend of versatility, resilience, and efficiency. The welding technique is a game-changer for professionals working off the grid or in challenging outdoor environments. Its ability to deliver quality welds under less-than-ideal conditions makes it a staple in the welder’s toolkit.
Gas-shielded FCAW
Gas-shielded Flux Cored Arc Welding (FCAW) belongs to the family of arc welding processes delivering a continuous, tubular filler metal electrode. This process benefits from the integrated flux compound within the core, which, when combined with an external shielding gas, offers superior protection against contamination. The versatility of gas-shielded FCAW renders it ideal for various industries, from construction to repair, adapting to thick and thin materials with exceptional ease.
Benefits And Considerations
When examining gas-shielded FCAW, clear advantages emerge, positioning it as a go-to method for robust welding:
- High Deposition Rates: Compared to other welding processes, gas-shielded FCAW can deposit more filler metal in less time, enhancing productivity.
- Superior Penetration: This technique achieves deep penetration, yielding strong joints even on thicker materials.
- Outdoor Versatility: Shielding gas protection makes it resilient against wind disruption, unlike SMAW or some self-shielded FCAW applications.
- Reduced Cleanup: Slag removal is minimal, curtailing post-weld cleanup time.
- Tackle Difficult Positions: The method is highly effective for welding in various positions, especially overhead and vertical seams.
- The cost and management of shielding gas supplies.
- Potential limitations when welding in tight or enclosed spaces due to gas flow requirements.
- Equipment mobility, as additional gear for gas cylinders, is necessary.
Welding Procedures And Techniques
Perfecting the gas-shielded FCAW technique demands adherence to a set of procedures:
- First, select the appropriate wire diameter and composition based on the welding position and the type of metal being welded.
- Set the optimal voltage, amperage, and wire feed speed on the welding machine, guided by the electrode manufacturer’s specifications.
- Precisely configure the shielding gas flow rate to test the weld pool properly without causing turbulence.
- Use the correct contact tip to work distance (CTWD), as maintaining proper stick-out length is critical for weld stability.
- Implement the right travel speed and angle to create consistent, high-quality weld beads.
- Use a slight drag angle and lower currents for overhead welding to prevent excessive melt-through.
- In vertical positions, adopt an uphill technique for better penetration and a downhill approach for thinner metals to avoid burn-through.
- Regularly monitor and adjust the tension on the wire feeder to ensure seamless feeding without slippage or bird nesting.
Mastering gas-shielded FCAW is about balancing variables for the best fusion of metals, leading to high-quality, defect-free welds. Focus on thorough preparation and consistency to excel in this robust welding arena.
Increased Productivity
Increased productivity stands at the forefront of advantages when we delve into Flux-Cored Arc Welding (FCAW). This advanced welding technique, characterized by its signature wire-fed process, offers an exceptional boost to welding operations across various industries. By optimizing the fusion process, FCAW not only enhances the speed of projects but also plays a pivotal role in maximizing cost-effectiveness. Uncover the potential benefits of this welding method to your operation’s bottom line.
Speed And Efficiency
The FCAW method is celebrated for its rapid deployment and efficiency gains. Unlike traditional welding processes, FCAW emerges as a beacon of productivity for several reasons:
- Continuous Wire Feed: FCAW employs a constant wire feed system, which eliminates frequent starts and stops—common in other welding types—thus maintaining a steadfast pace.
- High Deposition Rates: Flux-cored welding can boast high deposition rates, increasing weld speed significantly compared to other welding processes.
- Limited Cleanup: With no need for slag removal due to self-shielding wires, post-weld cleanup time is reduced drastically.
- Adaptability: FCAW adeptly handles various materials and thicknesses, making it a go-to for projects requiring versatility and agility.
The transcendent nature of FCAW’s speed and efficiency marks a significant leap for industries targeting optimum productivity.
Cost-effectiveness
Flux-Cored Arc Welding is not only about pace but also about economic efficiency. This welding technology helps businesses to lower their overhead costs in several ways:
| Aspect | Cost-Saving Mechanism |
|---|---|
| Materials | Reduction in the need for consumables—such as shielding gas in self-shielding wires—curtails material costs. |
| Labour | Shortened welding times and ease of use minimize labour costs while boosting output. |
| Energy | FCAW’s heightened energy efficiency reduces power consumption, trimming energy bills. |
| Equipment | Long-lasting wear parts and reduced need for multiple machines lessen equipment expenses. |
By integrating FCAW into their welding repertoire, companies can realize tangible savings directly affecting their profitability.
Enhanced Weld Quality
Flux-cored arc welding (FCAW) has significantly transformed the landscape, delivering exceptional benefits beyond the capabilities of traditional welding methods. Among its most acclaimed advantages is its enhanced weld quality, which stems from various factors inherent to the process. This superior quality manifests in the strength and durability of the welds and the reduced spatter and fumes produced during operation, making FCAW a preferred technique for industrial projects where precision and cleanliness are paramount.
Strength And Durability
One of the hallmarks of Flux Cored Arc Welding is its welds’ exceptional strength and durability. Thanks to the design of the flux core wire, the welding process benefits from deeper penetration and stronger adhesion between the welded materials. This results in joints that can withstand higher stress and wear, making them ideal for heavy-duty applications.
- Enhanced penetration leads to stronger weld joints.
- Better bonding ensures longevity under stringent conditions.
- Consistent welds can support heavy loads and resist wear.
Reduced Spatter And Fumes
A persistent challenge in welding operations is managing spatter and fumes. FCAW addresses this by utilizing a special flux that minimizes spatter and aids in emitting fewer fumes. Not only does this lead to a cleaner work environment, but it also enhances the overall quality of the weld by providing a smoother finish with less post-weld cleanup.
| Feature | Benefit |
|---|---|
| Less Spatter | Cleaner welds with minimal cleanup required |
| Lower Fume Production | Improved safety and air quality for welders |
A cleaner welding process translates to enhanced weld aesthetics and robust integrity, as less spatter reduces potential weak points in the joint.
Material Compatibility
Understanding material compatibility is crucial when delving into the technicalities of Flux Cored Arc Welding (FCAW). This sophisticated welding technique increases productivity and quality, specifically when choosing suitable base metals and thicknesses. Let’s explore the various aspects of material compatibility, including appropriate base metals and how thickness and joint configurations impact the FCAW process.
Appropriate Base Metals
Flux-cored arc welding is compatible with a wide range of base metals. From carbon steel to alloyed steels and some stainless steels, the versatility of FCAW makes it a preferred method in industries like construction and shipbuilding. The key is to select the correct filler material and flux composition that match the chemical and mechanical properties of the base metal being welded.
- Carbon Steel: Ideal for general construction, it offers excellent weldability.
- Low-Alloy Steels: Common in structural applications, requiring flux with low hydrogen specifications.
- Stainless Steel: Used in environments where corrosion resistance is necessary, stainless mandates a specific flux type for proper fusion.
Thickness And Joint Configurations
The success of FCAW also depends on metal thickness and joint design. Flux-cored wires are suitable for various thicknesses but excel in applications where materials are thicker and require higher deposition rates. Correct standard preparation enables practical welding on thick materials without compromising speed or quality.
| Material Thickness | Recommended Joint Type |
|---|---|
| 0.8 mm – 4 mm | Lap and Butt |
| 4 mm – 12 mm | Butt with V or U preparation |
| 12 mm and above | Double V or U preparation |
Varying thicknesses often require different welding parameters and techniques. Thinner materials are usually welded with short-circuit transfer, while thicker materials may need spray or globular transfer for proper penetration. Similarly, joint configurations such as lap, butt, and fillet are chosen based on the project and metal thickness, ensuring full penetration and a strong weld.
Power Sources And Equipment
Entering flux-cored arc welding (FCAW), a welder must have expertise, the correct power sources, and equipment. The success of any FCAW project hinges on the proper synchronization of welding machines and consumables, alongside strict adherence to safety protocols. In preparing for efficient and high-quality welding, knowing which tools and materials are necessary is half the battle won. Let’s delve into the specifics of the welding machines you need, the consumables required for the operations, and the safety gear that must be a staple in every welder’s toolkit.
Proper Welding Machines
FCAW demands a specific type of welding machine—typically, devices that support a constant voltage power supply suit this job best. These machines provide a steady arc length, resulting in an unwavering voltage critical for the flux core welding process. Users should opt for:
- Multi-process welders: offering versatility to switch between FCAW and other welding processes.
- Welders with adjustable voltage and wire feed speed: for a customizable welding experience, suiting different project requirements.
- Portable welders: these units are advantageous for projects in various locations, emphasizing mobility and flexibility.
The selection of a welding machine also depends on the scale of the operation—from smaller, handheld devices for home use to hefty industrial machines for larger projects.
Required Consumables And Safety Gear
When it comes to FCAW, the consumables play a pivotal role. The flux core wire is the central consumable and should be chosen based on the material being welded. Other consumables include:

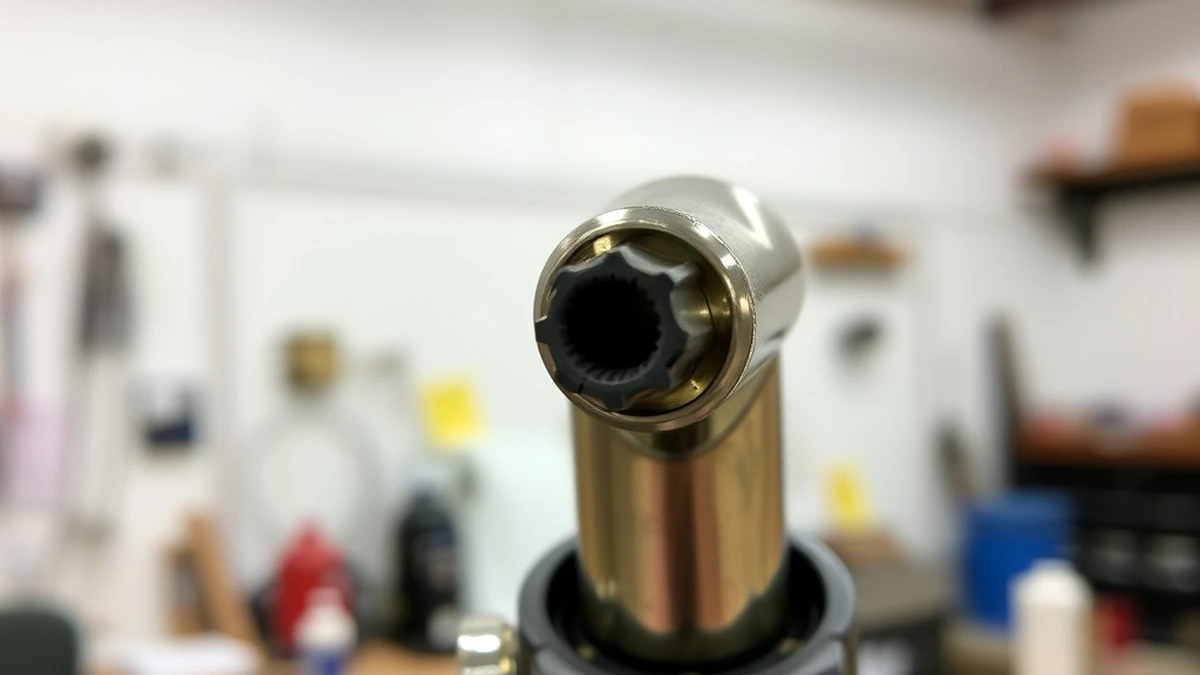

| Consumable | Use |
|---|---|
| Flux core wire | Fills and fuses the metals |
| Contact tips | Electrical contact with the wire |
| Nozzle gel | Prevents spatter sticking |
| Anti-spatter spray | Protects workpieces from spatter |
While welding, safety cannot be overstated. A robust safety protocol and top-notch gear will ensure welders are guarded against the inherent risks of the job. Crucial safety gear includes:
- Auto-darkening welding helmet: Protects eyes and face from heat, debris, and intense light.
- Fire-resistant welding jacket: Shields the skin from sparks and heat.
- Welding gloves: Offers dexterity while protecting hands from burns.
- Safety glasses: Serves as a secondary layer of eye protection.
- Welding boots: Protects feet from falling objects and sparks.
- Ear protection: Reduces noise levels from equipment.
Each piece of safety gear is a non-negotiable in the FCAW process since one’s well-being should always take precedence in a high-risk environment.
Vertical Welding
Vertical welding is a critical flux-cored arc welding (FCAW) skill. It involves welding metal plates or sections that are in an upright position. This technique can be challenging due to gravity’s effect on the molten weld pool, but with the proper knowledge and practice, vertical welding can produce solid and high-quality welds.
Tips And Best Practices
Mastering vertical welding in FCAW requires adherence to specific techniques that will ensure a strong and stable weld. Here are some tips and best practices:
- Use the correct angle: Keep the welding gun at a 5 to 15-degree grade.
- Select proper parameters: Adjust voltage and amperage settings based on the metal’s thickness and the weld’s position.
- Control travel speed: Maintain a consistent rate to ensure even heat distribution.
- Employ a weaving technique: Use a slight side-to-side motion with the welding gun to distribute the weld evenly.
- Pause at the sides: When weaving, pause briefly at each side to ensure good fusion with the base metal.
- Stick-out length: For optimal control, keep the wire stick-out length between 3/8 to 1/2 inch.
Overcoming Challenges
Vertical welding presents unique obstacles that must be overcome to produce a sound weld:
| Challenge | Strategies |
|---|---|
| Gravity Causing Drips | Control the weld pool size and use a faster travel speed to prevent dripping. |
| Ensuring Even Heat Distribution | If available, avoid excessive heat using a lower voltage and amperage or implementing pulsed FCAW. |
| Controlling Slag Inclusion | Use the correct technique and clean the weld between passes to keep the weld area free from contaminants. |
| Dealing with Porosity | Ensure good shielding gas coverage and avoid contaminants that can cause weld porosity. |
Horizontal Welding
Mastering flux-cored arc welding (FCAW) in the horizontal position presents unique challenges and opportunities for welders. Flat welding, especially with FCAW, requires a careful approach to technique and positioning, ensuring solid and reliable welds. This type of welding is often used in construction and repair work for structures such as bridges and ships, where welding in different positions is necessary.
Techniques And Positioning
The key to proficient horizontal welding with FCAW lies in understanding the effect of gravity on the weld pool. Proper technique and positioning are paramount. Here are some tips to ensure success:
- Travel Angle: Maintain a steady travel angle of 15 to 45 degrees. This helps control the weld puddle and penetration.
- Work Angle: A slight tilt of 0 to 15 degrees from the top plate appropriately directs the filler metal.
- Speed: Weld consistently to avoid uneven bead appearance and defect formation.
Moreover, welders should periodically practice their hand steadiness and body positioning to develop the muscle memory needed for consistent horizontal FCAW.
Common Issues And Solutions
Horizontal FCAW can present several common issues, from slag inclusion to lack of fusion. To combat these challenges, welders can employ the following solutions:
| Issue | Solution |
|---|---|
| Slag Inclusions | Clean the surface thoroughly before welding and maintain the appropriate speed. |
| Lack of Fusion | Ensure correct travel and work angles to enhance fusion. Adjust amperage as needed. |
| Excessive Spatter | Check for proper polarity and fine-tune voltage settings to reduce spatter. |
Adherence to best practices in weld setup, execution, and post-weld cleanup addresses these common issues for a successful horizontal FCAW experience.
Wire Feed Speed And Voltage
The precise calibration of wire feed speed and voltage is a cornerstone of flux-cored arc welding (FCAW). Mastering these settings optimizes the welding process and directly influences the weld’s quality and strength. By understanding the nuances of wire feed speed and voltage, welders can adapt to various materials and positions, enhancing their versatility and competence.
Impact On Penetration And Deposition Rate
The relationship between wire feed speed and voltage in FCAW is pivotal for achieving the desired weld characteristics. A well-balanced setting ensures adequate penetration and a consistent deposition rate. Here’s how they interplay:
- Increased Wire Feed Speed:
- This lA higher deposition rate leads to adding more filler material to the weld pool.
- It can decrease penetration if not counterbalanced by voltage adjustments.
- Amplified Voltage:
- Spreads the arc, flattening the weld bead and potentially increasing penetration.
- Too much voltage can lead to excessive spatter and a more expansive, shallower weld pool.
Optimal settings depend on the weld joint geometry, material thickness, and the objective of the welding process. These factors require attentive adjustments to maintain a stable arc and desirable penetration while avoiding defects like spatter or lack of fusion.
Adjusting For Different Materials And Positions
Different materials and welding positions necessitate adjustments to the wire feed speed and voltage to compensate for thermal conductivity and gravity. The following pointers facilitate the necessary adaptations:
| Material/Position | Wire Feed Speed | Voltage |
|---|---|---|
| Thick Materials | Higher to ensure sufficient deposition | Increased to achieve deeper penetration |
| Thin Materials | Lower to prevent burn-through | Reduced control heat input |
| Overhead Position | Adjusted lower to combat gravity | Finely tuned to avoid excessive melt-through |
| Vertical Position | Carefully increased for consistent bead | Appropriately adjusted to ensure stable arc and to prevent sagging |
For every dynamic in material thickness or position change, welders must skillfully calibrate the wire feed speed and voltage to control the welding process. These adjustments help achieve solid and defect-free welds that are conducive to the integrity of the welded structure.
Shielding Gas Selection
When delving into the intricacies of flux-cored arc welding (FCAW), the shielding gas selection is a critical factor that significantly impacts the welding process. This selection not only influences the protection of the molten weld pool from atmospheric contamination but also plays a vital role in defining the weld’s final appearance and mechanical properties. This section will explore the various aspects of choosing the proper shielding gas mixtures and their effects on weld outcomes.
Choosing the suitable gas mixtures
Choosing The Right Gas Mixtures
Shielding gases in FCAW protect the weld area from oxygen and nitrogen in the air, which can lead to defects and poor weld quality. The right choice of shielding gas mixture depends on several factors, including:
- The material being welded
- The desired weld penetration
- The weld position (flat, vertical, overhead)
- Cost considerations
- Equipment availability
Carbon dioxide (CO2) is often a common choice for its deep penetration capabilities and cost-effectiveness. Argon and carbon dioxide mixtures, with varying proportions (typically 75/25 to 90/10), are also popular as they create a more stable arc and help to reduce spatter.
| Gas Mixture | Combinations | Common Applications |
|---|---|---|
| 100% CO2 | 100% Carbon Dioxide | General purpose welding |
| Argon + CO2 | 75% Argon / 25% CO2 85% Argon / 15% CO2 | Welding of carbon and low-alloy steels |
Influence on weld appearance and mechanical properties
Influence On Weld Appearance And Mechanical Properties
The shielding gas does more than protect the weld from contaminants; it also plays an integral role in determining its final appearance and mechanical properties. For instance:
| Shielding Gas | Weld Appearance | Mechanical Properties |
|---|---|---|
| 100% CO2 | Rougher weld with more spatter | Deep penetration, suitable for thicker materials |
| Argon + CO2 mixes | Smoother bead with less spatter | More controlled penetration with better sidewall fusion |
Choosing a higher argon content in the mixture typically results in a smoother weld bead appearance with reduced cleaning requirements. Conversely, a higher CO2 content may lead to a more robust but less visually appealing weld. The mixture should be tailored to the project’s needs, balancing aesthetics against structural integrity.
Overall, understanding the role of shielding gas in FCAW is critical for achieving optimal results. With proper selection and application, welders can substantially enhance the quality and efficiency of their welding projects.
Frequently Asked Questions Of Flux Cored Arc Welding
What Is Flux Cored Arc Welding (FCAW)?
Flux-cored arc welding, or FCAW, is a semi-automatic or automatic arc welding process. It utilizes a consumable electrode containing a flux and often requires a shielding gas. It’s primarily used for welding thick materials quickly.
How Does FCAW Differ From Mig Welding?
FCAW uses a wire with a flux core, while MIG welding uses a solid wire. The core material in FCAW eliminates the need for external gases and can penetrate thicker materials. MIG is cleaner but less versatile in outdoor applications.
What Are The Advantages Of Using FCAW?
The advantages of FCAW include high welding speed, good penetration, and the ability to weld in various positions. FCAW is also more tolerant of dirty or rusty materials, making it suitable for construction and repair work.
Can FCAW Be Used Without A Shielding Gas?
Yes, some FCAW applications can be performed without a shielding gas. These are known as self-shielded flux-cored wires. They contain a compound that releases a protective gas as it decomposes with the weld’s heat.
Conclusion
Flux-cored arc welding stands as an adaptable solution for tough welds. It’s critical for those seeking efficiency and versatility in their welding projects. Remember, choosing the suitable filler material and equipment is crucial. Embrace FCAW, and watch your metalwork transform with robust and reliable joins.
9 thoughts on “Flux Cored Arc Welding: Master Your Skill!”
