Can You Dry Welding Rods in the Oven: Safe Methods Revealed

# Can You Dry Welding Rods in the Oven: Safe Methods Revealed

Last updated: October 2026

A bridge contractor’s winter job had a pattern nobody wanted to admit: every X-ray failure happened on Monday. The rods lived in the truck over the weekend, humidity did what humidity does, and the low-hydrogen 7018s came out of the box Monday morning carrying moisture their coating was never supposed to hold. The fix took twenty minutes of argument and one purchase order — a proper holding oven, set to temperature, rods staged for Monday instead of rodeoed from the tailgate. The radiographer’s film went quiet after that: no more clustered porosity, no more centerline cracks in the root passes of cold, restrained joints. The rods hadn’t changed suppliers. The storage had changed everything.

That story frames this guide’s question honestly: **yes, you can dry welding rods in an oven — but “oven” has to mean the right oven, the right temperature, and the right electrodes, because the same act that rescues a moisture-soaked 7018 will destroy a cellulosic 6011 and turn a family kitchen into a chemistry hazard.** Rod drying isn’t a folk trick; it’s hydrogen control — a discipline with manufacturer charts, exposure limits, and hard “never bake this” categories that decide whether your weld metal runs clean or cracks cold.

So — can you dry welding rods in the oven?

**Yes — low-hydrogen stick electrodes (E7018, E8018, E9018 and family) are designed to be re-dried in a controlled oven per the manufacturer’s chart (commonly in the ~250–450°C / 500–850°F range for a specified time, then held in a temperature-controlled storage oven at ~100–150°C / 200–300°F), because their flux coating absorbs atmospheric moisture that turns into diffusible hydrogen — the root cause of porosity and hydrogen-induced cold cracking. But three boundaries matter instantly: (1)** use a dedicated welding rod oven (or a verified, dedicated, precisely controlled unit) — never a home/kitchen oven (temperature accuracy, fumes, contamination, family safety); (2) never bake cellulose-coated electrodes like E6010/E6011 — organic constituents burn out and ruin the coating (follow the AWS/manufacturer sheet — some rutiles tolerate limited re-dry, cellulosics generally don’t); (3) drying is temperature-and-time-specific — too cool does nothing, too hot cracks the coating and changes arc chemistry; and dried rods must then be stored in a holding oven or sealed container, because dried-but-left-out rods re-absorb moisture within hours.

This guide delivers the complete system: the hydrogen science (where moisture comes from, how it cracks steel — the three-element cracking triad); the electrode classification story (what H4/H8/H16 mean, why 7018 demands an oven and 6010 demands a sealed bag); manufacturer drying charts decoded (re-dry vs holding temperatures, exposure clocks); oven choices (dedicated rod ovens, holding ovens, portable caddies — and exactly why kitchen ovens are banned, with the homemade rod oven option examined honestly); storage and field practice (sealed bags, desiccant, rod caddies, humid-shop discipline); how to tell your rods went wet (porosity patterns, arc behavior, cracking post-mortems); the other consumables (TIG filler, MIG wire — who gets baked and who just gets wiped); safety (fumes, burns, oven placement); then myths, scenarios, FAQs, and the verdict — plus links into the porosity and rod-number libraries for the adjacent questions.

Table of Contents

1. The Short Answer
2. Why Rods Get Wet: The Moisture Story
3. Hydrogen: The Enemy in the Coating
4. Electrode Families: Who Gets Baked, Who Never Does
5. The H-Number: Reading Classifications Like a Pro
6. Drying Charts Decoded: Temperature, Time, Holding
7. Oven Options: Dedicated, Holding, Portable, Homemade
8. Kitchen Ovens: The Hard No
9. Storage Discipline: After the Dry Comes the Hold
10. Field Reality: Humidity, Trucks, and Job-Site Rods
11. How to Tell Your Rods Went Wet
12. Other Consumables: TIG, MIG, Brazing, Cast Rods
13. Safety: Heat, Fumes, and Oven Placement
14. Myths vs. Facts
15. Real-World Scenarios
16. Frequently Asked Questions
17. The Bottom Line

The Short Answer

The answer in seven points:

1. Drying is real science, not shop folklore. Low-hydrogen electrodes ship with controlled moisture content; air exposure restores moisture; re-drying to the manufacturer’s specification drives it back out. AWS classification and manufacturer instructions assume ovens exist in your workflow — that’s why the charts exist.
2. Right rods: low-hydrogen families (E7018, E8018-B2, E9018, E11018, 308-16 stainless, and most H-classified electrodes) — these are the oven’s customers.
3. Wrong rods: cellulosic electrodes (E6010, E6011, E6019? no — 6010/6011 cellulosic; some 6010-family) — baking burns out the organic compounds that produce their deep-penetrating gas shield; coating cracks, arc characteristics collapse, and the electrode is scrap. When in doubt: the electrode’s AWS spec sheet (or your rod’s datasheet) is the authority, not the internet.
4. Right oven: a dedicated welding electrode oven with real temperature control (±10–15°C class), accurate thermostat, and holding capability — plus portable rod caddies for site work (homemade rod oven builds covered with their caveats).
5. Wrong oven: the kitchen range — imprecise, contaminated, fume-shared, and absolutely the wrong place for flux chemistry (or anyone’s dinner). The answer to “can you dry rods in the oven” is “yes to a rod oven, no to the oven you cook in.”
6. Right after drying: holding. Dried rods re-absorb moisture within hours in open air — the oven’s second job (storage at holding temperature, ~100–150°C / 200–300°F typical) matters as much as the bake.
7. The stakes: moisture in a low-hydrogen coating becomes diffusible hydrogen in the puddle → porosity (see the defect guide) and, in restrained/high-strength/thick/cold joints, hydrogen-induced cold cracking hours after the weld looks perfect — the failure mode that makes X-ray film and in-service cracks.

One sentence: bake what the chart says, in an oven built for it, hold what you bake, and never let a cellulosic rod meet a heating element — the chemistry wrote the rules before your shop opened.

Why Rods Get Wet: The Moisture Story

The Coating Is a Sponge (A Chosen One)

Stick electrode flux coatings are engineered mixtures — minerals, slag formers, arc stabilizers, deoxidizers, gas producers, and binders (sodium silicate and relatives) that hold it all on the wire. Those binders and the coating’s porous structure adsorb water from the air continuously. The drier the shop, the slower the pickup; the muggy the shop, the faster — but always some pickup. A rod out of its sealed bag in a 70% humidity shop is a hydrogen delivery system with a clock on it.

Where the Water Comes From (Field Edition)

• Open packaging — the classic: box opened for “just this job,” bags left unsealed on the bench for weeks.
• Truck storage — day/night humidity cycles, rain, spilled coffee, condensation in metal toolboxes: field rods live hard.
• Shop humidity — coastal, river-valley, rainy-season, and unconditioned winter shops (cold rods in warm humid air = condensation on everything, including rod boxes).
• Direct contamination — water, cutting fluid, dew, or a rod dropped in the puddle; surface moisture wicks into coating cracks.
• Age — even sealed packaging has a shelf life; expired sealed bags are a real (if slower) risk category.

How Much Moisture Matters (The Numbers That Exist)

Manufacturers and the AWS specification define moisture limits for as-supplied coatings (this is what the H-numbers measure — next section) and exposure limits before re-drying becomes required. The physics: equilibrium moisture content rises with humidity and time — there’s no “slightly wet” moral category, only the manufacturer’s threshold and your joint’s crack sensitivity. A restrained, high-strength, thick-section, cold-weather weld has a much lower tolerance for hydrogen than a relaxed, mild-steel, room-temperature repair — which is why the same rod behaves perfectly in one shop and cracks in another.

The Condensation Trap (Overnight/Weekend)

Rods cold-soaked in a truck enter a warm shop and sweat — condensation films the coating before you notice. Wiping helps (surface only); the moisture that already wicked into the binder doesn’t wipe off — only time-and-temperature drives it out. This is the Monday-morning X-ray pattern from the opening story: the rods weren’t submerged, they were cycled.

Hydrogen: The Enemy in the Coating

The Conversion Chain

Moisture (H₂O) in the coating meets arc heat → dissociates → atomic hydrogen (H) enters the weld pool → some escapes as gas (fine), some stays dissolved in molten steel → on solidification, solubility plummets → diffusible hydrogen migrates through the solid metal toward traps (inclusions, notch roots, high-stress zones) → and where it concentrates under stress in susceptible microstructure: crack. The timeline is the nasty part: hydrogen cracks can appear hours to days after welding — the “perfect-looking” root pass fails overnight while the crew’s at the hotel.

The Cracking Triad (Three Legs, Always Three)

Hydrogen-induced cracking needs all three legs:

1. Diffusible hydrogen present — from wet coating, contaminated base, oil, rust, or dirty filler. (The leg you control with the oven.)
2. Susceptible microstructure — hard, brittle zones: high-carbon/alloy steel HAZ, rapid cooling, untempered martensite. (Controlled by preheat, interpass, and cooling rate.)
3. Tensile stress — residual stress from restraint, thick sections, poor fit-up, shrinkage constraints. (Controlled by joint design, sequencing, fit-up.)

Remove any leg and the crack can’t form — which is why crack control is a system: dry rods + preheat + sensible restraint management. The oven defends one leg; the procedure defends the others. See how rod classification and electrode choice feed the same system.

Hydrogen’s Other Misbehaviors

• Porosity: excess hydrogen nucleates gas in the freezing puddle — pinpoint and clustered pores, the same story the porosity guide tells from the surface side.
• White fracture surfaces: hydrogen-affected cracks show bright, granular faces in failed samples — the forensic signature.
• Reduced toughness/ductility: sub-critical hydrogen without a visible crack still degrades properties — X-ray and bend tests catch what eyes can’t.

Why “Low Hydrogen” Electrodes Exist

The 7018 family’s flux is formulated and processed to minimize moisture uptake and hydrogen pickup — baked during manufacture, H-classified, and expected to be re-dried by the end user. Using them without respecting moisture control is like buying a precision instrument and shipping it in a rain barrel: the classification promises hydrogen control; storage and drying deliver it.

Electrode Families: Who Gets Baked, Who Never Does

The single most important practical section — get this taxonomy right and the rest is details.

Family A: Low-Hydrogen / Basic Coatings — THE OVEN CUSTOMERS

Examples: E7018 (the archetype), E7016, E7015, E8018, E9018, E10018, E11018, most 7018-variant stainless (308L-16, 316L-16 families), many nickel and alloy electrodes with H-classifications.

• Why they need drying: basic flux systems are moisture-sensitive by chemistry; their low-hydrogen rating is maintained by controlled drying and storage.
• What baking does: drives adsorbed moisture out of the coating, restoring the electrode toward its as-supplied hydrogen condition within the chart’s time/temperature window.
• AWS/manufacturer support: explicit re-dry and holding instructions — the numbers come from the rod’s own datasheet.

Family B: Cellulosic Coatings — THE NEVER-BAKE CATEGORY

Examples: E6010, E6011 (and cellulosic-blend relatives in the 6019? — keep to clear examples: 6010/6011/6018? no. 6010 and 6011 are the canonical cellulosic field electrodes; some 7010 variants for pipeline are cellulosic too — E7010-G etc.)

• Why they exist: organic (cellulose) components deliberately generate a forceful gas shield and deep, digging arc penetration — pipeline roots, open gaps, out-of-position field work; their “hydrogen” profile is accepted by design for the applications they serve, with procedures acknowledging it.
• What baking does: burns the organics out of the coating — gas production collapses, arc behavior changes, coating cracks and flakes, and the electrode loses the very properties it was sold for. Do not oven-dry cellulosic electrodes unless — rarely — the specific manufacturer’s sheet explicitly permits a defined re-dry (some manufacturers allow limited re-dry for specific cellulosic grades under their exact chart; the default answer remains no).
• The correct moisture fix for wet cellulosics: discard seriously compromised rods; for mild exposure, follow manufacturer guidance (often: they tolerate more ambient exposure than basic types, or specify limited re-dry) — but your chart is the law, not the general rule.

Family C: Rutile / Iron-Powder Coatings — CHART-DEPENDENT

Examples: E6012, E6013, E7014, E7024, many “easy AC” general-purpose rods.

• Reality: some tolerate limited re-drying; some aren’t rated for it; hydrogen sensitivity of their applications is generally lower (softer, more forgiving joints), which is why the question rarely matters for casual work — but the manufacturer’s sheet decides, always. When the rod is cheap and the joint is unstressed, sealed storage beats any baking gamble.

Family D: The Chart Decision Tree

1. Read the electrode’s classification and datasheet (box label → AWS A5.x spec → manufacturer re-dry table). (Rod numbers decoded helps you read the classification.)
2. H-classified or “low hydrogen”? → oven drying and holding apply; take numbers from the chart.
3. Cellulosic (6010/6011/pipeline 7010 types)? → default never bake; sealed storage and planned usage instead.
4. Unclassified/cheap import? → treat as chartless: sealed storage only; don’t invent temperatures.
5. Structural/coded work? → the WPS (welding procedure specification) may require specific holding conditions — the procedure outranks everything.

Memory hook: 7018 loves the oven; 6010 loves the bag.

The H-Number: Reading Classifications Like a Pro

What H4, H8, H16 Mean

On classifications like E7018 H4 or H8 (also written E7018-1H4 etc. in some conventions), the H-indicator specifies the maximum diffusible hydrogen allowed in the deposited weld metal, measured in milliliters per 100 grams of deposited metal under the standard test:

• H4 = ≤ 4 mL/100g — very low hydrogen (the premium moisture-controlled class)
• H8 = ≤ 8 mL/100g
• H16 = ≤ 16 mL/100g — higher allowance (older/common baseline)
• No H marking on an older or unmarked electrode = no guaranteed hydrogen ceiling (or spec-version dependent) — suspect and check.

Why the Number Changes Your Life

The H-number tells you both how sensitive the electrode’s chemistry is and how the manufacturer expects you to protect it: lower H numbers demand tighter storage and drying discipline (they’re promising more), and in cold, restrained, or high-strength applications, the procedure may specify an H class outright. Welding a heavy restrained joint with unmarked, truck-aged rods when the spec wanted H4 is how paperwork and X-rays start disagreeing with your week.

How to Verify On the Job

1. Box label and certificate — H class, lot/batch number, manufacture date.
2. AWS test certificate (when required by code work) — manufacturer’s moisture/hydrogen data.
3. Manufacturer datasheet — exposure limits, re-dry temperature/time, holding temperature — the three numbers that run your oven.
4. Procedure (WPS/PQR) for coded work — it may specify rod conditioning beyond the base specification.

**Treat the H-number as the electrode’s promise and the drying chart as the maintenance manual for that promise.**

Drying Charts Decoded: Temperature, Time, Holding

Every manufacturer publishes a re-drying/holding table for its low-hydrogen lines — reading one correctly is the whole skill.

The Three Numbers You Need

1. Re-dry temperature (peak drying): the temperature the rods must reach to drive moisture out — commonly in the broad range of ~250–450°C (500–850°F) depending on electrode family and manufacturer (7018-class products frequently sit in the ~300–400°C / 575–750°F neighborhood; some specifications call different windows). The chart on your box overrides every general number in this guide.
2. Re-dry time at temperature: commonly 30–60+ minutes — the clock starts when the rods reach temperature (a cold box of rods in a preheated oven needs soak time, not just door time).
3. Holding/storage temperature: the long-term home — commonly ~100–150°C (200–300°F) — warm enough to keep driving equilibrium moisture low indefinitely, cool enough to leave the coating chemically untouched.

Reading a Typical Chart Correctly

• As-supplied: no drying needed if rods are fresh, sealed, and within exposure limits — just hold them properly.
• After ambient exposure: if exposure time exceeds the manufacturer’s limit (defined in hours for specific humidity conditions — often measured in hours-to-days per class), a defined re-dry restores condition.
• Storage after opening: transfer to holding oven or sealed container immediately — the chart’s holding row is not optional advice, it’s the second half of the process.
• Maximum cumulative re-dry: some charts cap total re-dry cycles — flux chemistry degrades after repeated heat cycles; rods have a drying life, not an infinite refresh.

Temperature Discipline (Too Hot Is Worse Than Too Cool)

• Too cool: nothing happens except wasted electricity; moisture remains; you now believe the rods are dry — the worst combination (false confidence + wet rods).
• Too hot: coating cracks, binder degrades, arc behavior shifts, low-hydrogen classification invalidated — you’ve manufactured a defective electrode out of a good one. Oven accuracy matters: a $20 thermostat swing of ±30°C isn’t drying discipline, it’s roulette (more on oven selection).
• No temperature verification? Use an independent thermometer/pyrometer once to calibrate your trust in the oven’s dial — the one-time check that keeps years of chart compliance honest.

Soaking Logic (Thermal Mass)

Rods absorb heat slowly — a full load of cold 1/4″ 7018 boxes takes time to reach core temperature. Rules of thumb in practice: preheat the oven, load sensibly (airflow around boxes/trays), add soak time for large loads, and don’t stack rods in a solid brick that the center of never sees. For coded work, follow the manufacturer’s load/soak guidance verbatim.

What the Chart Never Says

It never says “kitchen oven,” it never says “guess,” and it never says “leave them on the bench after.” Chart literacy = reading the whole row: temperature + time + what happens after.

Oven Options: Dedicated, Holding, Portable, Homemade

Option 1: Dedicated Rod Ovens (The Professional Standard)

Purpose-built electrical ovens for electrode storage and re-drying:

• Temperature range covering holding through re-dry setpoints, thermostats accurate enough to hold chart conditions, insulation, and often dual compartments (holding + re-dry).
• Capacity math: buy for your consumption cycle — the oven’s job is holding every opened low-hydrogen box you own, not the box you’re using today.
• Cost logic: an oven is cheap against one rejected X-ray weld, one crack cut-out, or one delayed shutdown — the ROI conversation takes about four seconds in production work.
• Brands/types range from small shop units to cabinet ovens — the selection criteria are simple: range, accuracy, capacity, reliability — plus a door that seals.

Option 2: Holding Ovens (The Quiet Essential)

Even shops that don’t re-dry daily need holding capacity at ~100–150°C (200–300°F): opened boxes live here forever (until used or cycled). A shop with wet-rod discipline but no holding oven is a shop that dries rods beautifully and then re-wets them on the bench in an afternoon. Holding is where the process either works or quietly fails.

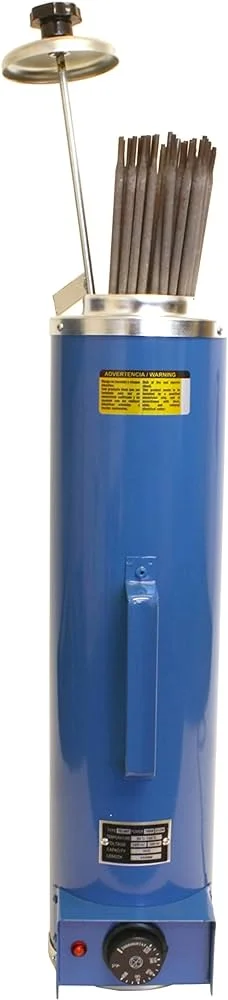

Option 3: Portable Rod Caddies / Field Ovens

Heated, insulated rod carriers for site work:

• Keep rods at holding temperature from shop to truck to jobsite — the field answer to the truck-humidity problem.
• Powered from shop power, generator, or truck supply (respect voltage/current specs) — read the field as a mobile holding oven, not an oven substitute for re-dry (many caddies hold; verify whether yours reaches re-dry setpoints before relying on it for drying).
• The pipeline and structural trades built their whole rod discipline around caddies for a reason: condition maintained in transit is condition delivered to the joint.

Option 4: Homemade Rod Ovens — Examined Honestly

The homemade welding rod oven route (insulated boxes, controlled heaters, DIY thermostat builds) exists because shop budgets are real:

• Legitimate when: temperature is measured and stable (independent thermometer verification, not just a dial’s optimism), construction is fire-safe (insulation rated for the element, no flammable contact with heat parts, strain-relieved wiring, grounded), duty is understood (holding versus re-dry capability proven), and the load never exceeds what the design verified.
• Failure modes: uncontrolled overshoot (scorching coating), dead thermostats that “hold” at bench temperature while everyone believes the chart, fire risk from improvised heaters, and zero documentation for coded work where equipment records matter.
• The honest verdict: DIY is acceptable holding capacity for non-code shops with verified temperature control; coded/structural/pressure work belongs in certified equipment with calibration traceable and records producible. Budget builds are a tool; unverified ones are a rumor about temperature.

Option 5: What Does NOT Count as an Oven

• Toolboxes, gloveboxes, and dashboards in summer (uncontrolled heat ≠ chart)
• Sunlit windowsills and radiant space heaters
• The welder’s body heat in a jacket pocket (real field “storage” — also real moisture pickup)
• “It was in the unheated trailer, but it’s dry out” (it isn’t)

The selection rule: whatever the box is, it must hold a verified setpoint the chart requires — the word “oven” means controlled temperature over time, not someplace warm.

Kitchen Ovens: The Hard No

The literal question — “can you dry rods in the oven” — gets a flat no for the oven where food lives. The reasons stack:

1. Temperature Truth

Domestic ranges are built for roasting, not charts: wide hysteresis, hot spots, calibration drift, and low-end limits (many can’t reliably hold 100–150°C, and “250°F” on a knob is a negotiation, not a setpoint). Rod drying demands specific, verified temperatures — a kitchen oven gives approximate, unverifiable ones: too cool = false drying; too hot = damaged coating.

2. Fume and Contamination Chemistry

Flux coatings baking off moisture and binders release residues no food environment should share — and conversely, oven grease, cleaning chemicals, and food vapors contaminate rods you’re about to melt into a structural joint. Cross-contamination runs both ways; both directions are disqualifying.

3. The Family-Safety Dimension

Household members cook in that oven; rod chemicals and food do not coexist — many flux compositions are not food-safe at any residue level, and “I’ll clean it after” is not a food-safety program. Some jurisdictions would consider deliberate chemical use in cooking appliances a health-code problem; all households would consider it a trust problem.

4. Precision and Liability

Codes and procedures expect controlled, documented equipment. “It was in the kitchen oven” is not a phrase that survives a quality audit, an incident review, or a conversation with an inspector — even when the rods came out chemically fine. Equipment credibility has value independent of the physics.

5. What About the Home-Build Question?

A dedicated, non-food electric oven (a converted or purpose-built unit in the shop — see homemade rod oven) is a different animal: it never shares duty with food, it gets a thermometer that tells the truth, and it lives where rods live. The line isn’t “oven” — it’s dedicated, controlled, verified, and out of the kitchen.

One-line ruling: the rod oven gets the rods; the kitchen oven gets the casserole; neither should ever be asked to do the other’s job.

Storage Discipline: After the Dry Comes the Hold

Drying without storage is bathing someone and sending them back into the rain — the moisture clock restarts the moment rods hit open air.

The Sealed Bag (First and Last Defense)

• Keep low-hydrogen rods in their inner sealed plastic (and outer box) until the moment of use — the manufacturer sealed them dry; breaking the seal starts the exposure clock.
• Reseal properly — heat-seal or robust clip/seal bags for partial use; “folded and taped” survives one shift, not one month.
• Label on opening: date/time opened (marker on the bag) — exposure discipline needs a clock, and memory is a bad hygrometer.

The Holding Oven (Permanent Home for Opened Boxes)

• Opened low-hydrogen boxes move into holding temperature — not back on the shelf.
• Rotate stock FIFO (first in, first out) so oven time doesn’t outlive re-dry cycle budgets.
• Keep the oven for electrodes — no lunch, no parts, no solvents; a clean oven is a controlled oven.

Desiccant and Sealed Containers (Where Ovens Aren’t Practical)

• Airtight containers with fresh desiccant are the second-best answer for small shops and field kits — replace/desiccate desiccant on schedule (spent desiccant is decoration).
• Indicator desiccant (color-changing beads) tells the truth visibly — cheap insurance for the tackle-box rod kit.
• Humidity indicator cards in containers turn “probably dry” into measured dry.

The Bench Rule

Rods on the bench are rods losing their condition. Bench staging = plan for immediate use of a limited quantity; everything else stays sealed or held. Shops that institutionalize “nothing opened sits out” have quietly solved the hydrogen problem at zero cost.

Rotation and Shelf Life

• Manufactured date matters — expired sealed stock gets re-certified (re-dry per chart if eligible) or retired.
• Opened stock ages fastest — prioritize usage; don’t build a museum of half-used bags.
• Rejected rods are allowed — a box that lived through a roof leak isn’t a write-off to argue over; it’s scrap. The cost of rods is the cheapest line item in welding economics.

Field Reality: Humidity, Trucks, and Job-Site Rods

The Truck Test (Be Honest)

Ask: where did those rods sleep last night? If the answer involves a truck bed, a damp shop corner, or a lakeside jobsite in July, assume exposure and apply the chart’s re-dry rules (if eligible) or sealed-storage discipline (if not). Field culture separates into two camps — caddy crews (rods held at temperature, delivered condition-intact) and tailgate crews (rods rodeoed, blamed on the rod brand when X-rays go bad). Guess which camp’s film comes back clean.

Site Storage Rules That Work

1. Elevated, dry, out of weather — pallets, sealed bins, tarps over sealed containers (tarps create condensation traps around cardboard — cover the inside box, not just the pile).
2. Day-seal discipline — reseal opened bags at end of shift; humidity doesn’t respect weekends.
3. Vehicle caddies — heated rod caddies for trucks on multi-week jobs; power management per manufacturer.
4. Weather watches — rain, fog, and coastal mornings are exposure events; plan rod staging around the forecast like you plan preheat around the steel.
5. Job’s WPS is boss — coded work may mandate holding ovens on site and inspection of storage practice; bring documentation, not opinions.

Climate-Specific Notes

• Hot-humid (coastal/tropical): assume aggressive pickup; holding oven or airtight+desiccant is mandatory infrastructure, not an upgrade.
• Cold-dry winter shop: sounds safe — until cold rods enter warm humid air and sweat; acclimate sealed boxes before opening (let them reach room temp sealed — no condensation, no surprise).
• Desert/dry: slower pickup, still not zero; sealed-bag discipline is habit everywhere because habits don’t climate-control.

The Generator-and-Gas-Side Caddie Setup

For remote work: portable heated caddies on generator power, fuel and electrical loads planned like any other tool — this is how pipeline and structural crews in the middle of nowhere keep an H4 promise intact. The infrastructure looks disproportionate until the first crack shows up in a restrained root; then it looks like the cheapest gear on site.

How to Tell Your Rods Went Wet

Detection is partly instrumented, mostly pattern-based — learn the signatures.

Pre-Weld Signs

• Bag interior wet/condensed — visible droplets or damp film = already past exposure limits for most classes.
• Coating texture — chalky, swollen, soft, or cracked-looking coating (especially after a wet soak) = compromised binder; eligible rods get chart treatment, dead rods get retired.
• Weight feel and smell — experienced welders swear by it; unscientific but consistent: heavily moisture-laden flux behaves “dead” under the arc.
• Indicator cards/desiccant in storage — your only instrumental pre-weld truth.

During the Weld (Arc Behavior)

• More spatter and popping than normal for that rod and settings — moisture boiling and gas evolution in the coating.
• Arc instability, wander, or stubbing changes — coating chemistry drifting from its design.
• Visible porosity as it happens — pinholes blooming in the bead as it freezes: the porosity guide’s classic presentation.
• Coating flaking/spalling off the rod as it burns — degraded binder (or an over-baked rod — history matters).

Post-Weld Evidence

• Surface porosity and crater pores — first visible confession.
• Radiographic/UT findings — subsurface pore trails, rounded indications clustered along the bead: the professional confirmation, and the expensive one.
• Delayed cracking — the cold-cracking story: sound-looking weld, hours later, hairline cracks at toes/in HAZ, bright fracture faces: hydrogen + stress + hard zone triad completed (hydrogen section).
• Bend-test failure with porosity/ cracks — coupon diagnostics for shops that test themselves (a habit worth building before the code test).

The Diagnostic Question Chain

1. Was the bead profile/arc normal? → if no, check rod condition first (cheapest variable).
2. Was the rod within exposure limits / held properly? → if no: hydrogen and gas pickup are suspect #1.
3. Was the base clean and dry (oil, paint, moisture)? → second hydrogen source — rods may be innocent.
4. Was gas coverage adequate (if dual-shield/gas process)? → separate porosity family.
5. Did anyone change anything (batch, shop humidity, storage)? → the pattern that proves the cause.

Rule of thumb: when porosity or cracking appears “suddenly” across a crew’s work, check the rod locker before the welders’ skills — moisture is the most common sudden-variable in stick welding.

Other Consumables: TIG, MIG, Brazing, Cast Rods

The oven question extends beyond stick electrodes — each consumable has its own rule.

TIG Filler Rods (No Flux → No Baking, But Cleanliness Is Sacred)

• Nothing to dry — bare metal rod has no coating to hold moisture; baking does nothing useful.
• What matters instead: wiping/degassing practice — store clean, in sleeves or clean containers, avoid oil, fingerprints, and grinding dust; aluminum filler especially hates contamination (wipe with clean, solvent-dampened lint-free cloth if handling was sloppy; dedicated aluminum-only storage).
• The hydrogen angle: surface moisture/oil on filler can contribute hydrogen and porosity — the fix is cleanliness, not heat.

MIG/Cored Wire (Sealed, Dry — Never an Oven)

• Solid MIG wire — copper-coated steel in sealed layers/spools; moisture pickup is slow but real in humid shops; store sealed, off the floor, in conditioned space; never bake a spool (binder/joint integrity of the wire’s surface coating, and nothing to gain).
• Flux-cored wire (FCAW/GMAW-D) — the core flux is moisture-sensitive like stick coating! Manufacturers specify storage (sealed, dry, sometimes re-dry conditions for specific products); the wire on a spool doesn’t go in an oven, but its storage discipline mirrors rod discipline: sealed containers, dry rooms, manufacturer guidance. (See flux core fundamentals for the process side.)

Brazing and Solder Rods (Chemistry ≠ Stick Rules)

• Aluminum brazing/solder rods (zinc-based families) — flux-coated or flux-cored variants exist; manufacturer storage guidance applies (dry storage; some flux-coated products dislike humidity), but rod-oven re-drying at stick-chart temperatures is not their protocol — follow the product’s own sheet.
• Silver brazing alloys — flux separately packaged; keep flux dry (clumpy flux is wet flux), rods stored clean and dry; no baking regimen like 7018’s.
• Cast-iron and specialty stick electrodes (Ni-Fe, Ni-Cu) — many are low-hydrogen or have specific holding instructions — the chart for that alloy electrode governs (nickel rods are expensive enough to justify reading the sheet anyway).

The Universal Principle

**Every consumable has a manufacturer’s storage story — the oven is only part of some of them.** Read the box’s sheet for that product: stick low-hydrogen → oven+hold; cellulosic stick → sealed, no bake; TIG filler → clean, not baked; MIG/cored → sealed/dry; brazing/solder → per product. The mistake is always the same: applying one product’s protocol to another’s chemistry.

Safety: Heat, Fumes, and Oven Placement

Oven discipline is fire-and-burn safety too — the equipment runs hot for hours, often unattended in shops full of combustibles.

Placement and Environment

• Ventilation: ovens release small amounts of moisture and trace flux volatiles during re-dry — place in ventilated shop space, not a sealed office or break room; not required to be “fume-event” level, but air should move.
• Combustibles: maintain clearances from paper, rags, solvents, cardboard piles, and welding wire packaging (yes, the boxes are packaging — keep flammables off and away from the oven shell per the oven’s own clearance specs).
• Stability and surfaces: oven stands must be rated for the load; hot shell surfaces need a “kids-and-elbows” awareness zone; floors dry (electric + water = bad day).
• Electrical: dedicated circuits where specified, undamaged cords, correct voltage — an oven is a continuous-duty load; daisy-chained power strips aren’t infrastructure.

Operation Safety

• Burns are the everyday hazard — insulated gloves for pulling hot trays/boxes; teach the whole shop that the oven is hot even when the light’s off; label it.
• Don’t exceed chart temperatures — over-temp damages rods and stresses oven components; use the setpoint the datasheet gave you.
• Door discipline — minimize open-door time while holding (heat loss = recovery load = drift); load/unload deliberately.
• Unattended operation — modern rod ovens are designed for continuous duty; still, choose equipment with sane thermal protection, and don’t run sketchy DIY heaters unsupervised overnight (a real argument for verified builds or commercial units).
• Emergency reality — know the shop’s extinguisher location; rod ovens aren’t high-fire-risk devices, but they live in a shop where “high fire risk” is a neighbor.

Documentation for Coded Work

Quality systems may require: oven identification, calibration/verification records, temperature logs for holding ovens, and re-dry cycle documentation per WPS. The safe shop and the audited shop converge on the same habit: log the setpoint, date, load, and verifier. Paperwork isn’t the enemy of craftsmanship — it’s how craftsmanship proves itself.

The Quick-Reference Card (Laminate This)

Print it, tape it inside the rod locker door, and every argument about whose rods are wet ends at the same card: condition is measurable, storage is cheap, and the chart always outranks the anecdote.

Myths vs. Facts

Myth 1: “Any oven will do — heat is heat.” Fact: chart drying requires verified, controlled setpoints; kitchen ranges drift, toolboxes don’t set, and a dead thermostat creates false confidence. The chart’s temperature is the spec; the oven must meet it, not approximate its vibe.

Myth 2: “Baking all rods makes them all better.” Fact: cellulosic electrodes (6010/6011 family) are ruined by baking — organics burn out, arc and shielding properties collapse. Baking is for chart-eligible (mostly low-hydrogen) electrodes only — 7018 loves the oven; 6010 loves the bag.

Myth 3: “Dry them once and they’re good forever.” Fact: dried rods re-absorb moisture the moment they meet humid air — holding ovens, sealed bags, and desiccant exist because the drying without the holding is a photo op. Storage is the other half of the process.

Myth 4: “My rods were sealed, so no drying needed, ever.” Fact: true until the seal breaks — and for expired sealed stock or seal-damaged bags, condition is unknown; the chart and the manufacturer’s exposure limits govern. Sealed means “as-supplied,” not “immune to time.”

Myth 5: “Hotter is drier — crank it.” Fact: over-temperature cracks coating, degrades binder, and invalidates the electrode’s classification — you’ve manufactured a defective rod. Chart temperature, chart time; the datasheet outranks enthusiasm.

Myth 6: “The kitchen oven is fine if I clean it after.” Fact: cross-contamination runs both ways (flux residues into food environments, food vapors onto rods), domestic temperature control can’t hold the chart, and household safety doesn’t negotiate with flux chemistry. Dedicated unit only.

Myth 7: “Porosity means my arc settings are wrong.” Fact: settings matter, but when porosity appears suddenly across a crew, moisture — in rods, base metal, or environment — is suspect #1. Check the rod locker before the dial (porosity guide).

Myth 8: “Cracks mean bad welding technique.” Fact: hydrogen cold cracking is a three-leg problem (hydrogen + susceptible microstructure + restraint) that can strike hours after a visually perfect weld — dry rods defend one leg; preheat and procedure defend the others. Technique alone doesn’t own this failure mode.

Myth 9: “Low-hydrogen rods stay low-hydrogen no matter how you store them.” Fact: the H-rating is conditional on proper storage and handling — truck-aged, bag-opened, bench-sitting 7018 is an H-number on a label, not a property of the rod in your hand. The classification is a promise the supply chain keeps — or breaks.

Myth 10: “TIG filler should be baked too, for consistency.” Fact: bare filler has no flux to dry — cleaning is the protocol, not heat. Baking TIG rod accomplishes nothing the lint-free wipe doesn’t do better.

Myth 11: “Homemade rod ovens are scams or fine — pick one.” Fact: neither — verified, temperature-controlled, fire-safe builds are legitimate holding capacity for non-code shops; unverified improvised heaters are a rumor about temperature with a fire risk attached. The line is measurement and verification, not price (homemade builds, honestly).

Myth 12: “If the rod runs OK, it’s dry enough.” Fact: arc behavior tolerates moisture the X-ray film doesn’t — surface beads hide subsurface porosity and hydrogen that finishes its work overnight. “Runs fine” is the worst kind of confirmation; verify by chart and test, not by eye.

Real-World Scenarios

Scenario 1 — The Monday-Morning X-Ray (Opening Story, Diagnosed). Structural crew, winter, recurring Monday porosity/cracking rejects. Root cause: rods slept in the truck through weekend humidity cycles. Fix: shop holding oven for opened boxes, heated caddy for the truck, bag-date discipline. Rejects stopped. The lesson: the rod’s week dictated the film’s verdict — condition management, not welder skill, owned the failure.

Scenario 2 — The 6010 Oops. A farm-repair welder reads “bake your rods” on a forum and puts his 6010s through a hot cycle for a root pass. The coating blisters and cracks off, arc force collapses, and the “deep-penetrating” root now washes and floats. The fix: new rods, and a laminated chart on the wall — classification first, temperature second. The myth cost one box of rods; the habit prevents a career of them.

Scenario 3 — The Kitchen Oven Incident. A hobbyist dries 7018 rods in the kitchen oven at “about 300,” his partner’s roast shares the rack’s history, and the argument that follows is about more than welding. The rods came out… something; the household rule came out permanent: shop tools stay in the shop. The triad of failure — imprecise temperature, cross-contamination, family trust — was visible from the start.

Scenario 4 — The Coded Job Audit. On a pressure-piping job, the inspector asks for electrode storage and re-dry records. The contractor with a logged, calibrated holding oven and WPS-compliant re-dry documentation passes in minutes; the competitor with “they were in the box” and a dial-only unverified oven spends the afternoon explaining — and re-drying, or replacing. Documentation is the credential the rods wear to inspections.

Scenario 5 — The Humid-Shop Conversion. A coastal fab shop’s 7018 performance was “always kind of porosity-prone” — accepted as geography. An engineer’s simple change: airtight bins + indicator desiccant for opened boxes while the budget awaited an oven, plus a pyrometer check revealing the old holding oven’s thermostat was 40°C off. Suddenly the shop had measured dry rods, and its “geographic porosity” vanished — it had been storage porosity all along.

Scenario 6 — The Field Caddie Win. A pipeline crew in summer fog country runs heated rod caddies powered off the generator; rods leave the shop at holding temperature and arrive at the tie-in still there. The x-ray contractor’s first comment after month one: “your reject rate’s weird — in a good way.” The crew’s answer was one sentence: condition never left the caddy. Infrastructure, visible payoff.

Frequently Asked Questions

Can you really dry welding rods in an oven? Yes — low-hydrogen electrodes are designed for it: re-dry per the manufacturer’s chart (temperature + time specific to the product), then hold at the chart’s holding temperature. Use a dedicated welding rod oven; never a kitchen oven; never bake cellulosic types like 6010/6011.

What temperature should I dry 7018 rods at? Take it from your rod’s datasheet — typical manufacturer windows for 7018-class re-drying sit in the ~300–400°C (575–750°F) range for ~30–60 minutes, with holding near 100–150°C (200–300°F) — but the box’s chart is the authority, and accuracy matters (too hot damages coating, too cool does nothing).

Can I use my kitchen oven? No. Temperature control isn’t chart-grade, fume/contamination cross-contamination cuts both ways, and food-appliance use is a household and health no. Dedicated rod oven or verified shop-only unit.

Should I bake 6010 or 6011 rods? No by default — cellulosic coatings contain organics that baking destroys (unless the specific manufacturer’s sheet explicitly defines a limited re-dry for a specific product). Sealed storage is the 6010/6011 protocol: 6010 loves the bag, 7018 loves the oven.

Do I have to keep rods warm after drying? Yes — holding temperature (or sealed container with active desiccant) prevents re-absorption; dried rods left on a bench re-wet within hours in humid air. The oven’s storage job matters as much as its drying job.

How long can rods stay out of the bag? Follow the manufacturer’s exposure limits (stated in hours/days per humidity conditions and H-class); when in doubt, treat as exposed and re-dry per chart (if eligible) — date-mark opened bags so the clock is real.

Will wet rods still weld “okay”? They may look okay — until porosity shows in the film or a hydrogen crack appears hours later. Surface appearance is not condition verification; chart discipline and testing are.

Does baking TIG or MIG wire help? No baking for either — bare TIG filler needs cleaning, not heat; solid MIG wire needs sealed, dry storage; flux-cored wire follows its manufacturer’s storage (sealed/dry) guidance, not a rod-oven chart.

What’s the difference between re-drying and holding? Re-drying = the corrective high-temperature cycle (chart temp/time) that drives accumulated moisture out; holding = the maintenance low-temperature storage (~100–150°C typical) that keeps condition while rods wait to be used. Correct first, maintain forever.

Are homemade rod ovens safe? Verified ones can be — independent thermometer proof of setpoint, fire-safe construction, and no coded-work expectations (homemade rod oven guide); unverified improvised heaters are neither safe nor chart-compliant. Commercial units with real thermostats are the professional default.

How do I know my oven is actually at temperature? Calibrate trust with an independent thermometer/pyrometer — check the oven’s reading against a known instrument once, and periodically after. An oven that disagrees with your chart is just a warm box.

Can old rods be re-dried back to new? If chart-eligible and within cumulative re-dry limits, re-drying restores condition substantially; degraded coating, damaged bags, or exceeded cycle counts mean retirement. Rods are consumables — their replacement cost is noise against a cut-out weld.

Where should I start if my shop has no oven? Sealed-bag discipline + airtight bins with fresh/indicator desiccant immediately (costs little), then budget a holding oven; log exposure; for coded work, close the gap first — storage controls buy time until equipment arrives. Also see choosing rods and rod numbers for the classification literacy that makes it all click.

The Bottom Line

Can you dry welding rods in the oven? Yes — if “oven” means a dedicated, temperature-verified welding electrode oven, and “rods” means chart-eligible electrodes (the low-hydrogen 7018 family and relatives) dried at the manufacturer’s specified temperature and time, then kept at holding temperature or sealed until use. The practice isn’t a hack; it’s hydrogen control — the deliberate removal of moisture whose arc-heat conversion becomes diffusible hydrogen, the ingredient behind porosity that X-rays find and behind cold cracks that appear hours after a perfect-looking pass. The science is why the charts exist, why H4/H8 labels matter, and why entire crews’ reject rates were solved by a purchase order instead of a training program.

The equally important “no”: cellulosic 6010/6011 rods never see a heating element (their organics are the product), kitchen ovens never see rods (precision, contamination, and household sanity all veto it), over-temperature never happens (damaged coating is a manufactured defect), and drying without holding is theater (re-absorption takes hours, and the bench is not a controlled atmosphere). Between those lines sits the full discipline: read the box’s chart, verify the oven’s thermometer, date the opened bag, hold what you dry, log what coded work demands, and treat every other consumable — TIG filler, MIG wire, cored wire, brazing rod — by its own storage story rather than by borrowed rules.

The bridge crew’s quiet X-rays and the coastal shop’s vanished “geographic porosity” tell the same story from two directions: the difference between rods that perform and rods that betray is condition management — measured, boring, and completely controllable. Keep the chart on the wall, the thermometer honest, the bags sealed, and the 7018 where it lives; the arc will reward the paperwork with the one thing the film can’t argue with — clean, sound, uncracked metal, Monday included.

References

1. AWS A5.1 (and family) specifications for carbon steel covered electrodes — diffusible hydrogen testing, H-classification (H4/H8/H16), moisture control expectations, and electrode packaging/exposure concepts.
2. Manufacturer electrode datasheets and re-drying/holding charts (7018-family and alloy/nickel electrodes) — product-specific temperature, time, and holding specifications overriding generic guidance.
3. Hydrogen-induced (cold) cracking metallurgy — diffusible hydrogen sources, the three-element cracking model (hydrogen, susceptible microstructure, tensile stress), and delayed-crack timelines.
4. Porosity defect literature — moisture/hydrogen contributions to weld gas porosity (porosity guide) and radiographic indication patterns.
5. Electrode coating chemistry references — basic/low-hydrogen, cellulose, and rutile coating families and their thermal sensitivities.
6. Welding equipment manufacturers’ guidance on rod oven selection, holding-oven temperature ranges, and field rod caddy practice; homemade oven considerations (homemade rod oven).
7. Welding procedure (WPS/PQR) requirements for electrode storage, conditioning, and documentation in coded work.
8. Welding safety practice — oven placement, hot-surface and electrical safety, ventilation, and shop fire discipline (safety tips).

Related WeldGallery Guides

• Can You Dry Welding Rods in the Oven? — this guide.
• Homemade Welding Rod Oven — the DIY build question, examined with verification standards.
• Porosity in Welding — the defect that moisture writes on film.
• Welding Rod Numbers Explained — reading classifications, H-numbers, and what the digits promise.
• How to Choose a Welding Rod and Welding Rod Types and Uses — matching electrode family to job (and to storage rules).
• Electrode Chart for Arc Welding and What Size Welding Rod Should I Use? — selection reference cards.
• Stainless Steel Stick Electrodes — where low-hydrogen storage discipline meets alloy rods.
