The salt had been in the air for only two seasons when the railing on the west side of our small marina started to weep. Fine white powder bloomed around every bolt head, and the aluminium handrail — polished, anodised, and expensive — had begun to pit and flake right where it touched the galvanised steel stanchions. Nobody had welded anything wrong. Nobody had overtightened a single fastener. The dock builder had simply bolted aluminium to steel, left a hairline gap where rainwater could sit, and walked away. Two winters later, the railing that was supposed to last thirty years was on track to fail in five.
That is galvanic corrosion in the wild. It is silent, it is predictable, and in hindsight it is almost always preventable. If you work with aluminium and steel anywhere near moisture — on a boat, a rooftop, a bridge, an aircraft, a car, or even a household plumbing run — the pairing of those two metals is one of the most common ways structures quietly destroy themselves from the inside out.
This guide walks through the full electrochemistry in plain language, the real-world scenarios where aluminium and steel meet, the prevention methods engineers actually use, what the standards say, what each approach costs, and the mistakes that turn a $50 fix into a $50,000 replacement. Every point is backed by primary sources you can follow up on yourself.
Galvanic corrosion (also called bimetallic corrosion or dissimilar-metal corrosion) occurs when two dissimilar metals form an electrochemical cell because they are in electrical contact and sharing an electrolyte — usually plain water, seawater, condensation, or even a damp film of road salt.
The mechanism is straightforward. When two different metals touch in the presence of an electrolyte, one metal gives up electrons more readily than the other. The metal that donates electrons becomes the anode; the metal that accepts them becomes the cathode. Electrons flow through the metal-to-metal contact, while ions travel through the electrolyte to complete the circuit. That circulating current is what drives corrosion.
In an aluminium-and-steel assembly, aluminium is almost always the anode and steel is the cathode. The anodic aluminium corrodes at an accelerated rate — dissolving, pitting, and losing cross-section — while the cathodic steel is effectively protected and may show little or no visible attack. The corrosion imbalance is driven entirely by the difference in electrochemical potential between the two metals, which is what the galvanic series measures.
Think of it as a battery that pays for its own operation by eating the cheaper metal. The bigger the voltage difference and the better the electrolyte, the faster the battery drains — and the “metal being drained” is your aluminium.
Three conditions must all be true at once for the reaction to start:
Break any one of those three and galvanic corrosion stops. Nearly every prevention method in this article works by deliberately breaking one or more of them. The U.S. National Bureau of Standards used aluminium and steel in contact as its textbook example of exactly this mechanism in Corrosion Facts for the Consumer, one of the earliest public guides to the problem.
Aluminium sits far more anodic (reactive) than steel on the galvanic series. In its pure state the standard potential for aluminium is about −1.66 V versus the standard hydrogen electrode, compared with roughly −0.44 V for iron. In real service, the passive oxide film that forms instantly on aluminium narrows that gap considerably, but the ranking never changes: aluminium still loses electrons to steel.
So when aluminium and steel are coupled in a wet environment, aluminium acts as the anode and corrodes at an accelerated rate, while steel — now cathodic — attracts electrons from the aluminium and slows its own corrosion at the aluminium’s expense. The result is a lopsided reaction in which one component does all the suffering.
Two details make aluminium especially vulnerable in mixed-metal systems:
This combination makes aluminium the weak link in mixed-metal systems — particularly when the assembly is exposed to harsh environments such as saltwater, de-icing salt spray, or persistently humid air.
The electrochemical series — more commonly called the galvanic series when it is measured in a specific service environment like seawater — is the engineering shorthand for predicting which metal will corrode. Metals are ranked by their measured corrosion potential, and the ranking tells you three useful things:
A representative galvanic series in seawater looks roughly like this, from most anodic to most cathodic:
| Position | Material | Behaviour when coupled with steel |
|---|---|---|
| Most anodic | Magnesium | Sacrificial — corrodes to protect everything else |
| Anodic | Zinc | Sacrificial — the basis of galvanising |
| Anodic | Aluminium and most aluminium alloys | Corrodes preferentially when coupled to steel |
| Intermediate | Carbon steel / wrought iron | Cathodic to aluminium, anodic to stainless |
| Cathodic | Stainless steel | Accelerates attack on aluminium |
| Most cathodic | Copper, brass, bronze | Severely accelerates attack on aluminium |
Engineers use this table during the design phase to predict which metal will corrode in a galvanic couple and to decide what isolation or protection is required. Because aluminium and steel are separated by a meaningful potential difference, aluminium–steel pairs always warrant additional preventative measures rather than bare metal-to-metal contact.
Separation in the galvanic series tells you whether corrosion will happen. The area ratio tells you how fast.

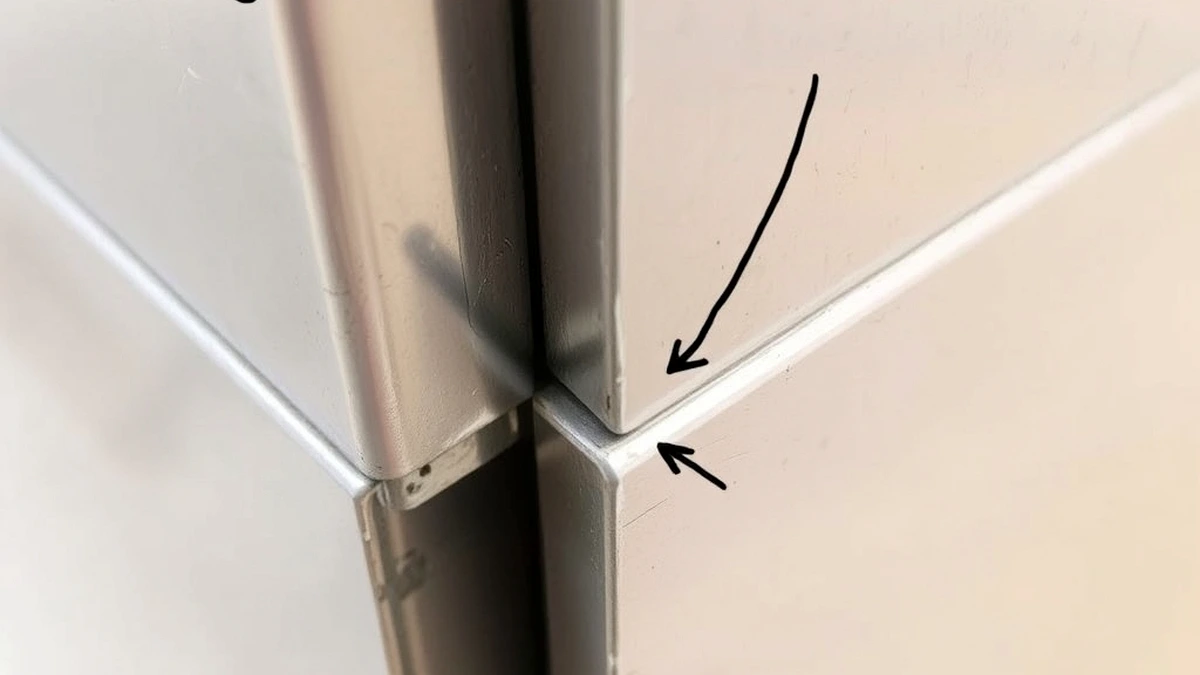

The governing rule is simple and counter-intuitive: a large cathode coupled to a small anode is the worst possible arrangement. The total galvanic current is driven largely by the cathode, because the cathodic reaction (typically oxygen reduction) has to happen somewhere. If the cathode is large, a lot of current is generated — and it must all be discharged through whatever anodic area exists. Concentrating that current into a small anode means a very high current density, and corrosion rate is directly proportional to current density at the anode.
Conversely, a large aluminium surface with only a few small steel fasteners creates a favourable ratio: the anodic area is large, so the current is spread out and the penetration rate is slow. Work indexed by the U.S. Department of Energy’s Office of Scientific and Technical Information on cathode-to-anode area ratio effects found that galvanic current increases with increasing cathode-to-anode area ratio, though the rate of increase tapers off at extreme ratios. The Specialty Steel Industry of North America’s galvanic corrosion reference states the practical consequence plainly: if the cathode area is very large and the anode area very small, the current produced is high and the anode corrodes quickly — while a large anode against a small cathode may see no measurable acceleration at all.
Practical consequences of the area-ratio rule:
Design rule of thumb: keep the anode as large as possible and the cathode as small as possible. If you cannot avoid the coupling, make the aluminium the big surface and treat every steel component as a contamination risk to be isolated.
It helps to picture the full circuit, because each part of it corresponds to a prevention strategy.
At the aluminium surface, aluminium atoms give up electrons and dissolve into the electrolyte as ions: Al → Al³⁺ + 3e⁻. Those electrons travel through the metal contact into the steel. At the steel surface, dissolved oxygen and water consume the electrons: O₂ + 2H₂O + 4e⁻ → 4OH⁻. Meanwhile, the aluminium ions and hydroxide ions migrate toward each other through the water and precipitate as aluminium hydroxide — the flaky white or grey corrosion product you see around a failing joint.
Prevention maps directly onto that loop. Insulating barriers interrupt the electron path through the metal. Coatings and sealants starve the cathodic reaction of oxygen and water. Environmental control removes the electrolyte altogether. Cathodic protection outbids aluminium for the anode role by introducing an even more reactive metal such as zinc or magnesium. Material selection simply chooses two metals too close in potential to sustain a meaningful current.
Electrolyte is the third member of the conspiracy, and it is the member most people underestimate. Pure, deionised water is a poor conductor; tap water is better; seawater is exceptional. The conductivity of the electrolyte determines how easily ionic current can flow between the anode and cathode, and therefore how much corrosion current the cell can support.
Key factors that make an electrolyte more aggressive:
This is why exposure category matters so much in specification work. A sheltered indoor joint in dry air may survive decades with bare contact. The same joint outdoors near the coast may show visible pitting within a year. Designers should always classify the service environment first and then choose protection to match it.
Practical test: if you can feel grit or salt residue on the surface after it dries, you have an electrolyte. Wipe-downs and freshwater rinse-downs in coastal areas are not cosmetic — they remove the conductive film that completes the galvanic circuit.
Aluminium and steel meet in far more places than most people expect. Below are the environments where the pairing causes the most damage, along with why each one is hazardous.
Marine settings are the classic arena for galvanic corrosion between aluminium and steel, and saltwater is the reason. Seawater is a powerful electrolyte — highly conductive, oxygen-rich, and constantly replenished — which accelerates the corrosion process aggressively.
Ships, docks, marinas, jetties, and offshore platforms routinely combine both metals because each brings something the other lacks: steel for structural strength and weldability, aluminium for weight savings. Aluminium superstructures on steel hulls, aluminium gangways bolted to steel piles, outboard brackets, railings, and swim platforms are all high-risk assemblies. Left unprotected, aluminium components in these environments degrade quickly, leading to costly repairs or full replacements — and in structural applications, to failures that are a safety hazard rather than a maintenance nuisance.
Offshore experience makes the risk especially clear. A review of structural connections of dissimilar metals published by the Norwegian offshore safety authority Havtil notes that direct contact between aluminium and carbon steel should be prevented in marine environments, with the surfaces segregated by non-metallic pads, and that galvanic corrosion of aluminium on platforms remains a recurring problem even where current-based requirements are applied.
Construction and architecture combine aluminium and steel for exactly the reasons you would expect: aluminium for its lightweight and corrosion-resistant cladding, steel for its durability and strength. In structural elements such as bridges, curtain walls, roofing, canopies, balconies, and railings, the two metals are frequently exposed to moisture from rain, condensation, and standing water, creating the potential for galvanic corrosion.
Roofing is a particularly common failure point. Steel fasteners driven through aluminium roof panels accelerate the corrosion of those panels if they are not properly insulated or coated. The failure typically starts as staining around the fastener head and progresses to perforation of the aluminium sheet — often first noticed as a leak after a heavy storm. Curtain-wall systems, where aluminium framing is anchored to steel structure, present the same risk at every bracket.
The U.S. Federal Highway Administration’s peer-exchange reporting on bridge corrosion documents how state transportation departments keep encountering dissimilar-metal details as a recurring corrosion theme on bridges, and how replacement decisions increasingly favour corrosion-resistant fasteners and isolation hardware precisely because of these joints.
Aerospace and automotive engineering use aluminium and steel in combination to achieve a balance between strength and weight — aluminium for mass reduction, steel for strength, fatigue resistance, and cost. Aircraft frames and car bodies may use aluminium panels attached to steel frames or subframes, creating opportunities for galvanic corrosion whenever the materials are not properly separated or protected.
What raises the stakes in these industries is the safety and performance standard. A corroded fastener hole in an airframe skin is not a cosmetic problem; it is an airworthiness issue. Aircraft manufacturers counter this with disciplined multi-barrier strategies: anodising aluminium components, sealing joints, using compatible fasteners, and designing drainage so water cannot linger. The automotive sector faces a parallel challenge as mixed-material bodies become the norm for fuel efficiency, with aluminium closures and panels mounted to steel structures, plus galvanised steel fasteners, brackets, and heat-exchanger components in constant contact with coolant and road salt.
NASA’s own technical standard for corrosion protection of space flight hardware is explicit about the risk: it requires that the potential difference between galvanic couples not exceed 0.25 V unless the couple current density is at or below 1 µA/cm² with no corrosion pits present, and it mandates that galvanic corrosion of incompatible assemblies be evaluated at assembly level. That 0.25 V threshold is a useful design target far beyond the launch pad.
Fasteners deserve their own section because they are the single most common site of field failures. A bolt, screw, rivet, or pin is where the electrical contact is intimate, where the electrolyte collects, and where the geometry often creates a small anode beside a large cathode — or the reverse, depending on the materials.
Typical failure patterns include:
The U.S. Army’s evaluation of fastening strategies for reducing galvanic corrosion in aluminium structures found that changing fastener material and coating measurably changes aluminium corrosion rates — but also that coated fasteners produced highly variable results, which is a reminder that the fastener’s clamped geometry and seal quality matter as much as the alloy on the label.
Heat exchangers are galvanic corrosion engines by design: two metals, a conductive fluid, elevated temperature, and high surface area, all in one package. Aluminium radiators and charge coolers plumbed to steel or copper lines, aluminium water pumps bolted to cast-iron engine blocks, and aluminium heater cores connected with brass fittings are all standard automotive examples.
Domestic plumbing raises the same issue in a regulated setting. The U.S. Environmental Protection Agency’s corrosion-control guidance for drinking water systems identifies galvanic corrosion as a primary corrosion form arising from coupling of dissimilar metals, which is why utilities carefully manage water chemistry when, for example, a new copper service line is connected to an older galvanized steel or lead pipe. The lesson transfers directly to any closed loop: if you are moving a conductive liquid between two dissimilar metals, plan for the couple.
There is no single switch that turns galvanic corrosion off. What works in practice is a layered approach: interrupt the electrical contact, exclude the electrolyte, and — where the stakes are high — add an active line of defence such as cathodic protection. The five method families below cover almost every engineering situation you will encounter.
| Method | What it does | Typical locations |
|---|---|---|
| Insulating barriers | Prevent metal-to-metal contact | Joints, fasteners, interfaces |
| Protective coatings | Reduce exposure to electrolytes | Surfaces of both metals |
| Cathodic protection | Redirect corrosion to a sacrificial metal | Ships, marine structures |
| Environmental control | Remove or limit the electrolyte | Enclosures, drained assemblies |
| Material selection | Reduce the potential difference at source | Design phase, fastener choice |
Insulating barriers are the simplest and often the most cost-effective way to prevent galvanic corrosion between aluminium and steel. These are non-conductive materials — plastic washers, neoprene or EPDM gaskets, nylon or PTFE sleeves, polymer spacers, isolating bushings, and non-conductive shim stock — that physically separate the metals and prevent them from coming into direct contact.
Because they break the electrical connection between aluminium and steel, insulating barriers interrupt the electron path that drives the reaction. Their value is highest at joints, fasteners, brackets, and other points where the two metals meet, and they are especially effective when combined with a sealant so the barrier also keeps water out of the joint.
Practical implementation details that determine whether isolation actually works:
Common isolating materials and where they suit best:
Protective coatings create a physical barrier that stops the electrolyte reaching the metal surface, and in some cases they also interrupt the electrical path. Several coating strategies are standard for aluminium and steel assemblies:
The critical point is coverage. A coating only works where it is intact, so both members of the couple should be coated — and the joint itself should be sealed afterwards. A scratched or pin-holed coating can be worse than no coating at all, because it converts the geometry into a small exposed anode beside a large cathode.
Cathodic protection works by introducing a more anodic material — typically zinc, magnesium, or aluminium alloy — that corrodes instead of the metal you are trying to save. It is the only method that protects metal even when the coating is damaged, which is why it is standard practice on large marine assets.
There are two implementation routes:
Cathodic protection has important limits worth stating plainly:
Limiting exposure to corrosive environments significantly reduces the risk of galvanic corrosion, because it attacks the reaction at the electrolyte stage. This is often the cheapest layer of protection to add during design.
Core environmental-control practices:
Regular maintenance to clean and inspect these areas for any signs of corrosion extends the lifespan of aluminium–steel assemblies considerably — and it is far cheaper than any of the structural repairs that follow a failure.
The most durable prevention happens at the drawing board, not in the field. Selecting materials that sit close together in the galvanic series removes the driving force before the joint is ever built, because metals with similar electrochemical potentials have a much lower tendency to corrode when in contact.
Design principles that reduce galvanic risk from the outset:
One joining detail worth flagging for anyone tempted to solve the problem with a weld: fusion welding aluminium directly to steel is not a practical option, because the two metals form brittle intermetallic phases across the joint. The workable routes are mechanical fastening with isolation, brazing, friction welding, or bimetallic transition inserts. If you are evaluating that trade-off, our guide on Can You Weld Aluminum to Steel covers what is and is not achievable, and the aluminum TIG welding settings chart is useful when repairing the aluminium side of an assembly afterwards.
Fastener selection deserves a second look because it is where theory meets the parts bin. The available options, and when each makes sense:
| Fastener option | Galvanic behaviour | Best use |
|---|---|---|
| Stainless steel in aluminium | Stainless is strongly cathodic; accelerates aluminium attack if unisolated | Structural joints — but always isolated and sealed |
| Zinc-plated or galvanised steel | Zinc is anodic to steel and sacrifices itself first | General steel-to-aluminium joints with moderate exposure |
| Aluminium fasteners | Same potential as the base; minimal galvanic driving force | Low-load joints where strength allows |
| Isolated fastener assemblies | No electrical path at all | Marine, coastal, and critical structures |
| Titanium fasteners | Narrow potential difference with aluminium in many environments | Aerospace and high-value assemblies; cost is high |
Plating and cladding offer a different route: keep the load-bearing steel, but change the surface it presents to the aluminium. Zinc and cadmium plating on steel fasteners, aluminium cladding over steel core material, and duplex or titanium cladding on pressure equipment all reduce the effective potential difference at the interface. The trade-off is that plated layers are thin — a scratch can consume them quickly — so plating works best as part of a system that also includes a sealant and a sensible area ratio.
Corrosion engineering experts consistently argue that no single measure is sufficient for critical applications. The consensus position is that the most effective way to prevent galvanic corrosion in mixed-metal applications is to combine multiple preventive measures rather than rely on one barrier.
Dr. Michael Beversdorf, a corrosion specialist, recommends using insulating barriers in conjunction with protective coatings and cathodic protection in highly corrosive environments such as offshore platforms. This multi-layered approach ensures that if one method fails — a coating chips, an isolator weeps, an anode is consumed — the others provide a secondary line of defence, significantly reducing the likelihood of aluminium degradation.
“Design for the failure of your first barrier.” Almost every experienced corrosion practitioner uses some version of this rule: assume the gasket will age, assume the paint will chip, and make sure the assembly still survives when it does.
That redundancy thinking is codified in practice, not just folklore. NASA’s corrosion protection standard for space flight hardware requires galvanic incompatibility to be evaluated at assembly level and applies explicit potential-difference limits, while the American Galvanizers Association’s design guidance recommends that when dissimilar metals must touch, they be separated with non-conductive materials and that the connection be detailed so it can be inspected. The same pattern — isolate, coat, seal, verify — shows up in aerospace, offshore, bridge, and automotive specifications alike.
Three points experts emphasise repeatedly:
A marina dock construction project combined steel beams with aluminium railings, chosen because steel provides strength in the piling and framing while aluminium keeps the handrail light, easy to install, and resistant to salt spray in its own right. The pairing is common — and it is also a textbook galvanic couple sitting in the most aggressive electrolyte most structures ever meet.
The project team prevented galvanic corrosion with a layered detail rather than a single measure:
Even when exposed to the harsh saltwater environment, the structure held up because no single point of exposure was allowed to become the whole defence. The proactive approach demonstrated the effectiveness of combining multiple preventive techniques in real-world marine applications, and it kept repair costs to touch-up scale rather than replacement scale.
The aerospace industry faces the challenge of using steel fasteners in aluminium airframes, particularly where weight reduction is critical. Every gram saved matters, so aluminium skins, stringers, and fittings are joined with high-strength steel and titanium hardware — right where a small anode and a strong cathode sit in intimate contact, inside a structure that collects condensation and is regularly exposed to de-icing fluids and humidity.
Aerospace manufacturers respond with a multi-layered approach that has proven successful in preventing corrosion in aluminium structures and ensuring long-term reliability:
NASA’s technical standard for corrosion protection of space flight hardware codifies the same philosophy with hard numbers: potential difference between galvanic couples is limited to 0.25 V unless current density is at or below 1 µA/cm², contacts between carbon composites and metals are treated as dissimilar metal couples and sealed, and electrical bonding contacts are over-sealed with protective coating or sealant after fastener installation. NASA’s spacecraft corrosion-control literature adds that galvanic couples are avoided unless suitably protected and that fasteners are installed wet with a barrier primer — the same practice commercial aviation uses.
A less dramatic but extremely common example is the mixed-material vehicle. An aluminium radiator or intercooler is mounted to a steel frame with steel brackets and rubber isolation, then plumbed with coolant that circulates between aluminium tanks and steel or copper fittings.
The failure sequence is predictable: the rubber mounts dry out and lose resiliency, salt-laden water wicks into the bracket interface, and the small steel bracket area becomes a concentrated cathode against the aluminium tank. Within a few winters, pinholes appear at the bracket contact points and the system starts to weep.
The fixes mirror the marine case at smaller scale:
For DIY repairs, these principles apply at the bench too: if you are joining aluminium to steel on a project, isolate the fasteners, coat the mating surfaces, and drain-proof the joint. Our guide to the best aluminum welders for beginners and what gas to use when welding aluminum cover the fabrication side of getting aluminium joints right in the first place.
The table below summarises each method family with its main advantage and its main drawback, so you can weigh them against your environment and budget.
| Method | Advantages | Limitations |
|---|---|---|
| Insulating barriers | Simple, cost-effective, and widely available | May wear out or degrade over time in harsh environments |
| Protective coatings | Versatile and applicable to both metals | Requires regular maintenance and reapplication |
| Cathodic protection | Highly effective for large structures | Expensive and requires complex installation |
| Material selection | Avoids corrosion from the start | Limited design flexibility and higher material costs |
| Environmental control | Reduces exposure to corrosive agents | Difficult to maintain in harsh environments like marine areas |
A second view of the same decision, focused on where each method works best and what it costs to keep running:
| Method | Best suited to | Relative upfront cost | Ongoing cost |
|---|---|---|---|
| Insulating barriers | Bolted joints, brackets, fasteners | Low | Low — inspect and replace on wear |
| Protective coatings | All exposed surfaces, both metals | Low to medium | Medium — periodic recoating |
| Cathodic protection | Ships, docks, offshore and buried structures | High | Medium to high — anode replacement and monitoring |
| Material selection | New designs, high-value or safety-critical parts | Medium to high | Very low once specified correctly |
| Environmental control | Enclosures, drained assemblies, indoor plant | Low to medium | Low to medium — depends on the environment |
Every barrier described in this article degrades. Paint chalks and chips, gaskets harden, seals shrink, anodes dissolve, and salt accumulates. Maintenance is what converts a design intention into a long service life, and it has three routine components.
Regular inspections are vital for maintaining the integrity of protective systems, especially in environments prone to galvanic corrosion. Inspections should focus on the condition of insulating materials, coatings, sealants, and other protective measures. If wear or damage is detected, repairs should be carried out immediately to prevent further corrosion from propagating.
A practical inspection routine looks like this:
Coatings such as paint and powder coating degrade naturally over time due to UV, abrasion, chemical exposure, and thermal cycling. High-risk areas — joints, fastener heads, splash zones, and any surface with frequent moisture exposure — require regular touch-ups to maintain effective protection.
Touch-up work only succeeds if the preparation is right:
In marine or industrial environments, reapplication may need to occur far more frequently than it would inland, and the interval should be shortened after any unusually heavy storm, splash, or chemical exposure event.
Some parts of a corrosion-control system are consumables by design. In systems using cathodic protection, sacrificial anodes eventually corrode and need replacement. Anodes should be inspected and replaced periodically based on the measured level of wear — a common rule of thumb is to replace when roughly half the anode mass is gone.
The same logic applies to:
A useful discipline is to keep a small spares kit of the exact isolators and fasteners used in the structure, so a maintenance visit can replace rather than improvise.
Choosing between methods is rarely a matter of “best” — it is a matter of which trade-offs your application can live with. Here is the honest accounting for the two most widely used approaches.
Insulating barriers are a cost-effective and simple method to prevent galvanic corrosion. They are particularly useful where small components such as fasteners bring aluminium and steel into contact — which, in most fabricated structures, is dozens or hundreds of individual points.
While insulating barriers are effective, they can degrade over time — especially in environments where the assembly is subject to movement, vibration, or sustained load.
In dynamic environments these barriers may wear out or become compromised, raising the risk of corrosion if they are not inspected and replaced on time.
Protective coatings provide a robust defence against corrosion by creating a physical barrier between the metals and the surrounding environment.
The effectiveness of protective coatings relies on proper application and ongoing maintenance. If a coating is poorly applied or left to degrade without reapplication, the metals become exposed to corrosive elements and the risk of galvanic corrosion rises sharply.
Careful selection of materials during the design phase mitigates galvanic corrosion risk from the outset, and it is almost always cheaper than any retrofit — often by an order of magnitude.
Practical guidance for the specification stage:
These choices may limit design flexibility or increase material costs, but they offer a long-term solution to corrosion risk by reducing the need for extensive preventive measures elsewhere in the structure. In other words, paying for a better fastener and an isolator at fabrication is far cheaper than paying for scaffolding and replacement panels ten years later.
For guidance on choosing filler metals and parameters when you are fabricating the aluminium side of these assemblies, our best aluminum welding rods and best aluminum TIG welder for the money roundups cover the practical equipment decisions.
The same joint that survives decades in a dry workshop can fail within a single season outdoors. Exposure category should drive the level of protection, not the other way round.
Saltwater environments are particularly corrosive because of the high electrolyte content in seawater, which accelerates galvanic corrosion between aluminium and steel. Chloride ions are especially damaging to aluminium because they break down the passive oxide film locally, producing the characteristic pitting attack.
In marine settings, protective measures need to be more aggressive rather than merely present:
Coastal proximity is not a binary. Even sites several kilometres inland receive airborne chlorides from sea spray, so “not on the beach” is not a justification for skipping isolation.
In urban and industrial settings, pollution and chemical exposure increase the presence of electrolytes in the air, raising the risk of corrosion even far from open water. Sulphur dioxide, nitrogen oxides, ammonia, and particulate deposits all form acidic or conductive films when they dampen on a surface.
Protective priorities in these environments:
Specifications matter because “corrosion resistant” is meaningless without a defined test. The standards below are the ones most frequently referenced for aluminium-and-steel assemblies.
ASTM B117, Standard Practice for Operating Salt Spray (Fog) Apparatus, is the most widely specified corrosion test in North America. It defines the apparatus, procedure, and conditions required to create and maintain a salt-spray environment: a 5% sodium chloride solution by weight, a chamber held at 35 °C, a fog collection rate of 1–2 mL per 80 cm² per hour, and a collection-fluid pH between 6.5 and 7.2.
What B117 does and does not tell you matters:
For that reason, modern specifications frequently pair B117 with cyclic corrosion tests such as those described in ISO 12944-9, which add drying, humidity, and temperature cycling to better approximate field conditions.
ISO 9227:2022, Corrosion tests in artificial atmospheres — Salt spray tests, is the international counterpart to B117 and one of the two most used corrosion test methods worldwide. It specifies the apparatus, reagents, and procedure for three variants:
Like B117, ISO 9227 explicitly states that the salt spray methods are suitable for checking that quality is maintained, but are not intended for comparative ranking of different materials or for predicting long-term corrosion resistance. In other words: use them to check that a process is still producing the same result, not to decide which of two designs will last longer on a jetty.
Where a project needs a defensible specification, the normal combination is a galvanic-compatibility rule (MIL-STD-889 or equivalent), a coating system qualified to ISO 12944, and a salt-spray or cyclic test to B117 or ISO 9227 as a process check.
Galvanic corrosion is not a niche engineering curiosity — it is a line item in the economy. The landmark study commissioned by the U.S. Congress and conducted by FHWA with NACE International estimated the total annual direct cost of corrosion in the United States at $276 billion, about 3.1% of GDP, with roughly another $550 billion in indirect costs. NACE International’s later IMPACT study, as summarised by the U.S. National Academy of Engineering, put the global figure at around $2.5 trillion per year, or 3.4% of global GDP, and estimated that between 15% and 35% of that — some $375 to $875 billion — could be saved with existing corrosion-control practices.
That last number is the important one for a project owner: the technology to prevent these failures already exists and is usually cheap relative to the failure it prevents.
| Method | Typical cost driver | Cost if skipped |
|---|---|---|
| Insulating barriers | Cents to a few dollars per fastener; labour to install | Fastener-hole failure; partial disassembly to repair |
| Protective coatings | Surface prep labour, cure time, periodic recoat | Panel or member replacement; scaffold access |
| Cathodic protection | Anode hardware, installation, monitoring, anode changes | Structural repair or dry-docking; survey findings |
| Material selection | Alloy and fastener premium at purchase | Design life not met; earlier replacement cycle |
| Environmental control | Drainage detailing, seals, desiccants, cleaning regime | Accelerated general corrosion across the asset |
Rule of thumb used across industry: prevention typically costs a fraction of repair, and repair costs a fraction of replacement after a failure — especially where access requires scaffolding, dry-docking, shutdown, or downtime. A $2 gasket that is never installed becomes a $2,000 panel once the structure has to be opened up, and a $20,000 member once the failure is discovered late.
If your work is smaller scale — trailers, gates, panels, workshop assemblies — the cost logic still holds, just at a different scale. Isolating a bolt costs almost nothing compared with the cost of grinding out a corroded hole and welding in a doubler. For those repairs, our cheapest way to weld aluminum guide covers the budget end of restoring damaged aluminium, and if you are building rather than repairing, our stainless steel MIG welding guide is relevant when stainless hardware or brackets are part of the assembly.
Most galvanic corrosion failures are not caused by exotic chemistry. They come from a short list of ordinary oversights repeated across thousands of joints.
Failing to account for environmental conditions — exposure to moisture, saltwater, de-icing spray, or industrial pollutants — is one of the most common mistakes when designing structures that combine aluminium and steel. The alloy callout may be perfect; if the joint detail assumes a sheltered indoor environment while the structure stands on a coastline, the design is wrong.
How to avoid it:
Protective coatings are only effective if properly applied. Skipping surface preparation, applying too thin a film, trapping moisture underneath, or using incompatible products results in an ineffective coating that allows galvanic corrosion to proceed — sometimes faster than if the joint had been left bare, because the breach concentrates the current.
How to avoid it:
One of the most overlooked causes of galvanic corrosion is the use of incompatible fasteners. Combining aluminium panels with steel fasteners — without appropriate barriers or coatings — leads to significant corrosion over time, because the fastener is exactly where electrical contact is intimate and where the electrolyte collects.
How to avoid it:
Putting all of the above together, here is a working sequence you can apply to any new aluminium-and-steel assembly.
Run that checklist once on a design and you will catch the great majority of galvanic corrosion problems before they are welded, bolted, or painted into a structure.
Galvanic corrosion occurs when two dissimilar metals come into contact in the presence of an electrolyte, causing one metal (the anode) to corrode more quickly than the other (the cathode). The reaction is driven by the difference in electrochemical potential between the two metals and is sustained by the electrical contact between them and the conductive path provided by water, salt water, or condensation.
Aluminium is more anodic than steel on the galvanic series, so it gives up electrons and corrodes faster when paired with steel in an electrolytic environment. Steel becomes the cathode and is protected at the aluminium’s expense. The effect is worst when the exposed aluminium area is small relative to the steel area, and when the electrolyte is conductive — as in seawater or de-icing salt spray.
Use insulating barriers, apply protective coatings to both metals, and implement cathodic protection such as sacrificial anodes or impressed current systems. In practice, marine details combine all three: neoprene or EPDM isolation at every joint, an epoxy-based coating system with a UV-stable topcoat, sealed and wet-installed fasteners, plus anodes sized to the structure’s submerged area and inspected on a fixed schedule.
Yes, but repair requires identifying and removing the cause, restoring protective coatings, and in some cases replacing corroded parts that have lost section. Preventative measures are almost always more cost-effective than repair, because a corroded fastener hole or thinned structural member usually demands partial disassembly, access equipment, and downtime that dwarfs the cost of the gasket that would have prevented it.
Anodising aluminium, hot-dip galvanising or zinc-rich priming steel, powder coating, and specialised corrosion-resistant paints are all effective coatings for preventing galvanic corrosion. The best choice depends on exposure: epoxy primers with a barrier build coat and UV-stable topcoat for marine work, anodising plus conversion coating for architectural and aerospace aluminium, and zinc-based systems where sacrificial protection is wanted.
Yes. A large cathode feeding a small anode concentrates the entire galvanic current into a small area, driving a high current density and a fast penetration rate. A large aluminium sheet with a few small steel fasteners behaves far better than a small aluminium tab bolted to a large steel plate. Where you cannot change the ratio, isolate the joint instead.
No. Fusion welding aluminium to steel produces brittle intermetallic compounds across the joint, so the weld itself becomes a mechanical weak point rather than a solution. The practical joining routes are mechanical fastening with isolation, brazing, friction welding, or bimetallic transition inserts — each of which still needs corrosion detailing at the interface.
No. ASTM B117 and ISO 9227 are excellent for checking that a coating process is consistent and for comparing panels tested under identical conditions, but both standards state they are not intended for ranking materials or predicting long-term service performance. Real service involves wet/dry cycling, UV, temperature swings, and contamination; cyclic corrosion tests such as ISO 12944-9 approximate that better, and field exposure remains the only true predictor.
Inspect them on an interval set by exposure — typically every 6 to 12 months in coastal or industrial settings and every 2 to 3 years indoors. Replace sacrificial anodes once roughly half their mass is consumed, and replace gaskets, washers, or sleeves that are cracked, hardened, compressed out of shape, or missing. When in doubt, replace: isolators are cheap and the consequence of failure is not.
Preventing galvanic corrosion between aluminium and steel comes down to a small number of decisions made deliberately: break the electrical contact, exclude the electrolyte, reduce the potential difference where you can, and add active protection where the environment justifies it. Insulating barriers, protective coatings, cathodic protection, environmental control, and sound material selection are all individually useful — but the assemblies that survive decades in salt air are almost always the ones that combine several of them.
By taking proactive steps at the design stage, you can significantly extend the life of mixed-metal structures, particularly in corrosive environments such as marine, industrial, or outdoor settings. Proper maintenance — regular inspection, timely touch-up coatings, and replacement of consumable components such as isolators and anodes — ensures that corrosion risks stay minimised and structures remain durable over time.
The marina railing at the start of this article could have been saved with a $20 set of neoprene washers, a bead of sealant, and a coat of primer on the steel. That is the whole lesson in miniature: galvanic corrosion is predictable, it is documented, and it is preventable. The only remaining question is whether you plan for it at the drawing board or discover it during the repair.
