Set up your machine and wear protective gear to weld with flux core wire feed welder. Select the appropriate wire size and type for your project material and thickness.
Welding with a flux core wire feed welder is a skill that combines convenience with versatility. This type of welding is especially suitable for beginners or those working in environments where shielding gas could be problematic. Using a wire with its own flux at the core, you can forgo the external gas typically needed in MIG welding, making it an ideal choice for outdoor projects.
Flux core welding is widely regarded for its ability to penetrate thick materials and produce durable welds, making it a go-to method for DIY enthusiasts, hobbyists, and professionals alike. Key steps include setting the correct amperage, maintaining a consistent speed, and using proper techniques to ensure solid and clean welds. With practice, welding with a flux core wire feed welder can be a straightforward and rewarding process.
Understanding Flux Core Wire Feed Welding Basics
Embarking on mastering flux core wire feed welding starts with a fundamental understanding of the process. This form of welding brings forth a blend of efficiency and convenience, making it a favorite among hobbyists and pros. With a flux core welder, you can tackle repair jobs, fabrication tasks, or even artistic metal endeavors. Let’s dive into the essential concepts that pave the ground for successful flux core wire feed welding.
Explanation Of Flux Core Wire Feed Welding
Flux-core wire feed welding, also known as FCAW (Flux-Cored Arc Welding), introduces a continuous, consumable wire fortified with a flux compound that eliminates the need for an external shielding gas. When the arc is struck, the wire melts, forming the weld, while the flux creates a gas shield and produces slag to protect the weld pool from contamination. It’s a process that thrives in windy conditions or on rusty materials where traditional MIG welding might falter.
- Setup: Relatively straightforward: installing the wire spool and setting the correct tension and feed speed.
- Execution: Involves dragging or pushing the gun at a consistent angle and speed.
- Variety: Available in both self-shielded and gas-shielded variations to suit different environments and materials.
Advantages Of Flux Core Wire Feed Welding
Flux core welding presents numerous benefits, ticking boxes for both functionality and versatility:
| Advantage | Description |
|---|---|
| Portability | Welders can operate without carrying bulky gas cylinders as flux eliminates the need for external shielding gas. |
| Outdoor Suitability | Performs exceptionally well outside, where wind can disperse shielding gases used in other welding methods. |
| Material Tolerance | Effective on dirty or rusty materials, requiring extensive prep work for other welding types. |
| Efficiency | High deposition rates make for quicker welds, saving time on extensive projects. |
| Penetration | Deep penetration allows for the welding of thicker joints without multiple passes. |
In essence, flux core wire feed welding is a robust method that adapts to various conditions and materials, streamlining the welding process for both novices and seasoned welders. Whether out in the field or within the confines of a workshop, this technique holds its ground, delivering solid and reliable results.
Safety Precautions For Flux Core Wire Feed Welding
Flux core wire feed welding offers numerous benefits, such as welding thicker metals and performing outdoors in windy conditions. However, like any welding process, it’s a procedure that demands respect and caution. Understanding and implementing proper safety measures is imperative to ensure welder safety and prevent accidents. Explore the essential safety gear and efforts to create a safe work environment using a flux core wire feed welder.
Necessary Safety Gear
Equipping yourself with the appropriate safety gear is crucial before initiating any welding project. When working with a flux core wire feed welder, the following items are indispensable:
- Welding Helmet: A high-quality, auto-darkening welding helmet shields the eyes and face from harmful ultraviolet and infrared radiation emitted during the welding process.
- Fire-Resistant Clothing: Garments from durable, flame-resistant materials help protect the skin from sparks and spatter.
- Welding Gloves: Use gloves to protect hands from heat, electricity, and sharp objects.
- Welding Apron or Jacket: An extra layer of protective clothing like a leather apron or a specially designed jacket can offer additional protection to the torso.
- Respiratory Protection: A suitable mask or respirator is vital for avoiding inhaling fumes and particulates.
- Ear Protection: Earplugs or muffs help safeguard hearing from the noise associated with welding.
- Safety Glasses: Wear ANSI-approved safety glasses under the welding helmet for eye protection.
- Steel-Toed Boots: Protective footwear reduces the risk of foot injuries from falling objects or accidental stepping on sharp items.
Safe Work Environment
Maintaining a safe work environment is equally important as personal protective equipment for welding. Attend to the following to minimize risks:
- Ventilation: Adequate ventilation is mandatory to dispel welding fumes and gases. Use exhaust hoods or fans as needed, especially in confined spaces.
- Fire Safety: Keep a fire extinguisher close at hand and remove flammable materials from the welding area to prevent fire hazards.
- Good Housekeeping: A clutter-free work area minimizes the chances of tripping, falling, or accidentally starting a fire. Regularly clean up the space.
- Electrical Safety: Ensure all electrical connections are secured from water or other conductive materials to prevent electric shock.
- First Aid: Keep a first aid kit within reach and be knowledgeable about basic first aid procedures in case of minor injuries.
- Proper Training: Always operate welding equipment with appropriate training and knowledge. Familiarize yourself with the manufacturer’s guidelines.

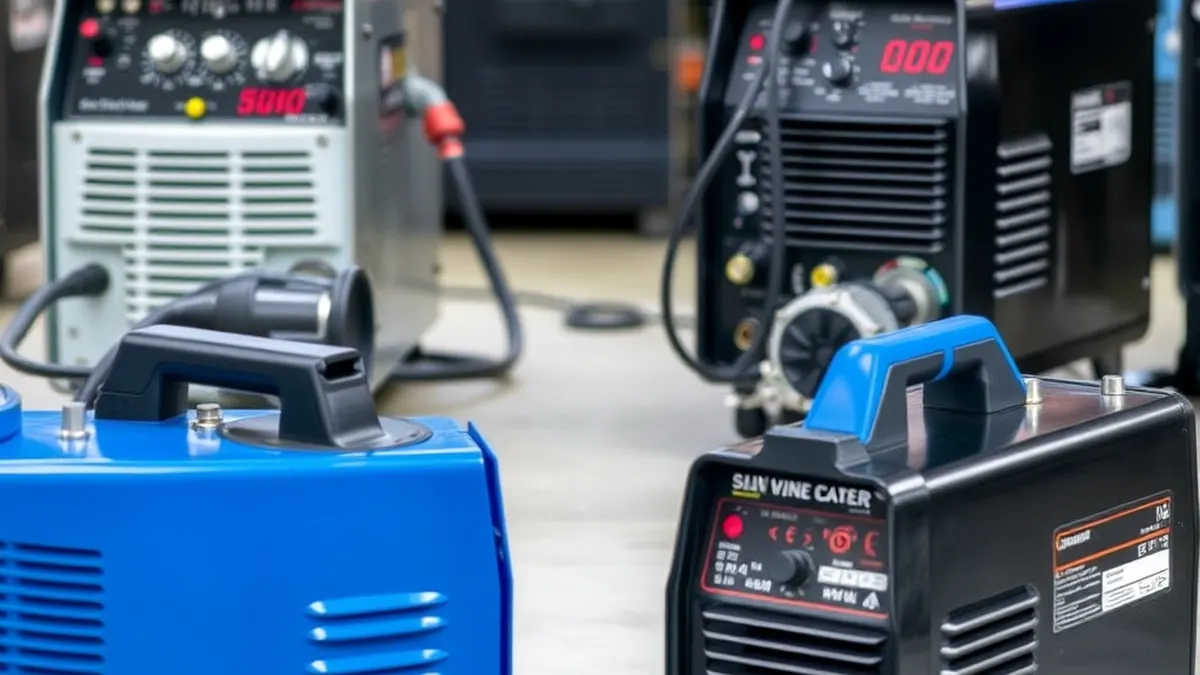

Choosing The Right Flux Core Wire Feed Welder
Stepping into the world of welding requires skill and the right equipment. A crucial member of your toolkit will be a reliable flux core wire feed welder. This type of welder is prized for its versatility and ease of use, especially for beginners and those tackling projects away from the convenience of a workshop. Let’s guide you through selecting the most suitable flux core wire feed welder for your requirements.
Types And Specifications
Selecting the appropriate welder begins with understanding the different types and their inherent specifications. Flux core welders are generally classified into two camps:
- Gasless Flux Core Welders: These welders do not require an external shielding gas, making them highly portable and suitable for outdoor use.
- Gas-Shielded Flux Core Welders: Often used for thicker metals and industrial applications, these require a shielding gas for operation but offer improved weld quality and versatility.
Specifications to consider while choosing a welder include:
| Specification | Description |
|---|---|
| Voltage | Typically, it ranges from 110V for home usage to 230V for industrial applications. |
| Amperage | Determines the maximum heat the welder can produce; affects welding capacity |
| Wire Feed Speed | Controls the rate at which the welding wire is fed into the weld; adjustable settings are preferable. |
| Duty Cycle | Indicates the duration a welder can operate continuously without overheating; represented as a percentage |
Factors To Consider When Selecting A Welder
Investing in a welder demands careful consideration of various factors to ensure compatibility with your projects:
- Material Thickness: Ensure the welder’s output aligns with the thickness of the materials you intend to weld.
- Portability: If you are moving the welder regularly, prioritize portability and the absence of a gas cylinder requirement.
- Weld Quality: Higher-end models may provide smoother, more consistent welds, essential for professional-grade work.
- Your Budget: Flux core welders come in a range of prices. Balancing cost with necessary features is critical to making a wise investment.
- Warranty and Support: A dependable warranty and accessible customer support can be invaluable for long-term satisfaction with your purchase.
Durability and reliability should also never be overlooked—research brands with positive reviews and a reputation for crafting long-lasting equipment. By considering these considerations, aligning them with your demands, and doing thorough research, you’ll be well on your way to securing a flux core wire feed welder that serves you effectively.
Installing And Setting Up The Flux Core Wire Feed Welding Machine
Embarking on a journey with flux core wire feed welding begins with a crucial step: correctly installing and setting up your welding machine. This process is fundamental to ensuring exceptional welds and your safety. You can tackle various projects with the proper setup, effortlessly adapting to diverse material types and thicknesses. Let’s walk through the critical stages of assembling your flux core wire feed welder and finetuning it for optimal performance.
Step-by-step Installation Guide
- Ensure Safety: Before you start, disconnect the welder from any power source to prevent electric shock.
- Assemble Components: Follow the manufacturer’s manual to assemble any loose parts of the welding machine.
- Install Wire Spool: Open the side panel and place the flux core wire spool, ensuring it unwinds in the correct direction.
- Feed the Wire: Guide the wire through the feed mechanism, trimming the end to prevent snags.
- Secure the Tension: Adjust the spool tension so the wire feeds smoothly without being too loose or tight.
- Connect to Power: Once the wire is installed and the machine is reassembled, connect the welder to an appropriate power outlet.
Adjusting Settings For Different Materials
The versatility of a flux core wire feed welding machine shines when working with different materials. Mastery of the settings ensures refined welds on every project:
| Material | Wire Speed | Voltage Settings | Tips |
|---|---|---|---|
| Thin Metal | Slow | Low | Use short bursts to prevent burn-through. |
| Thick Metal | Fast | High | Employ a steady, continuous weld for deep penetration. |
- Read the Manual: Check your welder’s manual for baseline settings suitable for your particular model.
- Test Runs: Experiment with scrap pieces before beginning the weld to find the perfect balance.
- Dial In: Use your machine’s dials or digital interface to adjust the wire feed speed and voltage as needed.
- Consider Thickness: Heavier materials will necessitate further adjustments to accommodate their density.
Each material interacts uniquely with the welding process. Start with the recommended settings and make incremental adjustments. Practice and patience lead to mastery in achieving intense, visually appealing welds.
Proper Welding Positions For Flux Core Wire Feed Welding
Mastering the art of welding with a flux-core wire feed welder starts with appreciating the nuances of positioning. Proper weld positions are the foundation for successful welding projects, as they directly influence the joint’s weld quality, penetration, and overall strength. Knowing how and when to use each is essential to becoming a proficient welder from flat to overhead positions. Let’s dive into the different welding positions you might encounter and weigh their pros and cons.
Understanding Different Welding Positions
Each welding position has its unique challenges and techniques. The most common situations include:
- Flat Position (1G or 1F): The metal is positioned so that the welding is performed on the top side, with gravity pulling the weld pool downward. This Position is considered one of the easiest for beginners.
- Horizontal Position (2G or 2F): Welding is done on the vertical plane but in a horizontal direction. Control over the weld pool is critical due to gravity’s side pull.
- Vertical Position (3G or 3F): Welding is performed on a standing seam. Uphill or downhill welding techniques depend on the application and metal thickness.
- Overhead Position (4G or 4F): The most challenging Position where welding is done from below the joint. The welder combats gravity directly and requires a high skill level to avoid defects.
Advantages And Disadvantages Of Each Position
Understanding the strengths and limitations of each Position ensures effective use of the flux core wire feed welder:
| Position | Advantages | Disadvantages |
|---|---|---|
| Flat Position |
|
|
| Horizontal Position |
|
|
| Vertical Position |
|
|
| Overhead Position |
|
|
With this knowledge, welders can select the appropriate welding position that offers the right balance of efficiency and quality for their projects with a flux-core wire feed welder.
Mastering Flux Core Wire Feed Welding Techniques
Flux core wire feed welding harnesses the convenience of MIG welding with the added protection of a flux core. It allows for high-speed welding without needing an external shielding gas. But, to achieve solid and clean welds with a flux core wire feed welder, developing a foundational understanding of the proper techniques is crucial. This section will dive into essential welding angles, speeds, and joint-specific strategies to enhance your flux core welding proficiency.
Welding Angles And Speeds
Mastering welding angles and speeds is the secret to a seamless flux core weld. Flux core welding, like any welding process, requires precision and consistency. Here are the key considerations:
- Travel Angle: Typically between 10 to 20 degrees. Tilt the welding gun slightly in the direction of travel. It helps ensure proper penetration and bead shape.
- Work Angle: Adjust according to the joint type. For example, a 90-degree work angle suits flat welds, while a 45-degree angle is optimal for fillet welds.
On the other hand, speed must synchronize with the melting rate of the flux core wire. Move too fast, and the weld bead could be too thin, leading to weak joints. Move too slowly, and excess spatter and a convex bead that may cause slag inclusions could result.
Techniques For Different Joint Types
Every weld joint demands a specific approach for optimal results. Here’s how to tackle the most common joint types:
But Welds Use a ‘drag’ or ‘pull‘ technique, holding the gun at a steady angle and using a straight-line movement along the joint. Lap Welds Start at the edge of the top piece and pitch down slightly into the lower part to ensure penetration into both sheets. T-Joints Maintain a 45-degree tip to distribute the weld on both sides of the joint equally. A slight weave may help bridge the gap between pieces. Fillet Welds: Deploy a small circular or zig-zag motion to fill the corner with weld material adequately.
| Joint Type | Technique |
|---|
With each joint type, pay attention to how the molten puddle forms and reacts to your technique. Your goal is to achieve a smooth, uniform weld bead with good penetration and without defects. Remember to keep a consistent tip-to-work distance to maintain arc stability and weld quality.
Common Issues And Solutions
Mastering the art of welding with a flux-core wire feed welder can be a rewarding experience, resulting in solid and reliable fabrications. However, it’s not without its challenges. Welders often encounter a series of common issues that can affect the quality of their welds. This section will dive into these complications and provide practical solutions to ensure your successful and problem-free welding projects.
Identifying Potential Welding Problems
Recognizing the signs of trouble early on can save time and resources. Key clues indicating issues may include:
- Erratic Arc: Inconsistent welding arc behavior.
- Poor Penetration: Welds lack depth in the base material.
- Excessive Spatter: The scattering of molten metal particles around the weld.
- Wire Feed Problems: Difficulty in feeding the wire through the welder.
Becoming familiar with these indicators helps promptly address the root causes and prevent subpar welds.
Troubleshooting Techniques
Confronting these issues head-on with effective troubleshooting is crucial for quality welding. Consider the following techniques:
| Problem | Cause | Solution |
|---|---|---|
| Erratic Arc | Incorrect tension, dirty wire, or improper speed settings. | Adjust tension, clean or replace the wire, and finetune speed settings. |
| Poor Penetration | Inadequate heat input or incorrect angle. | Increase power settings or adjust the angle of the welding gun. |
| Excessive Spatter | Too much wire speed or voltage. | Reduce wire speed or voltage to appropriate levels. |
| Wire Feed Problems | Tangled spool or burrs on the tip. | Untangle or replace the spool, trim the wire and replace the tip if necessary. |
By systematically applying these solutions, welders can overcome common challenges and improve their performance with a flux core wire feed welder. Consistent practice and attention to detail are essential to mastering the process and achieving solid and clean welds.
Credit: www.amazon.com
Maintenance Tips For Flux Core Wire Feed Welder
Ensuring your flux core wire feed welder operates smoothly involves regular maintenance and proper storage. Just like any tool in your arsenal, taking care of your welder extends its life and improves the quality of your welds. Below are expert tips to keep your welder in top shape.
Cleaning And Storing The Welder
- To avoid electrical hazards, turn off and unplug the welder before starting any maintenance work.
- Use a clean, dry cloth to wipe down the exterior of the welder, removing dust and spatter that accumulate during the welding process.
- Periodically inspect the drive roll and nozzle, and clean them with a wire brush to prevent build-up that can hinder wire feeding.
- Ensure the wire feed path is free from obstructions and apply a cleaning solvent if necessary to remove sticky residues.
- Store your welder in a cool, dry place to prevent rust and undue wear from environmental factors.
- Cover the welder with a protective cover to shield it from dust when not in use.
Regular Maintenance Routine
Regular check-ups and preventive maintenance are keys to consistent welder performance. A proper maintenance routine should include:
| Maintenance Task | Frequency |
|---|---|
| Check and replace the contact tip if necessary | After every welding project or when signs of wear appear |
| Inspect and tighten all electrical connections | Every six months or as needed |
| Replace the liner if wire feeding becomes erratic | Annually, or sooner if issues arise |
| Lubricate moving parts sparingly with appropriate grease | Annually or as specified by the manufacturer |
In addition to the table above, consider these points as part of your regular maintenance routine:
- To avoid downtime, maintain an adequate supply of replacement parts, such as nozzles and contact tips,
- Examine the power cord and welding gun cable for any signs of wear or damage.
- Test the ground clamp for proper tension and a solid connection.
- Calibrate and regularly validate the machine’s settings to align with your welding output requirements.
Incorporating these maintenance tips into your workflow ensures your flux core wire feed welder consistently delivers high performance and precision. A well-maintained welder is your ally on the work site, providing reliable service and outstanding results job after job.
Practice Exercises For Flux Core Wire Feed Welding
Diving into the world of welding can be exhilarating and challenging at the same time. With the proper Practice Exercises for Flux Core Wire Feed Welding, you’ll gain the confidence and skill to produce solid, durable welds. Like any craft, welding requires practice and dedication. Specific exercises can sharpen your technique and improve your control over the flux core wire feed welder, whether you’re a novice or looking to enhance your existing skills.
Beginner Exercises
If you’re new to the welding scene, mastering the basics is crucial for a solid foundation. Beginner exercises focus on getting comfortable with the welder, understanding the process, and learning to create consistent beads. Start with these simple yet effective drills:
- Pad of Beads: Begin by laying a series of straight beads on a flat plate. Concentrate on maintaining consistent speed and gun angle.
- Primary Butt Weld: Practice joining two metal pieces in a butt joint. This simple joint helps you understand how to control heat and metal flow.
- T-Joints: Move on to T-joints to develop precision in more complex joins. Keeping a steady hand is vital as you weld the perpendicular pieces.
Advanced Practice Techniques
Once you’ve conquered the basics, advanced practice techniques will test your skills further, pushing you to become even more proficient with the flux core wire feed welder. Engage in the following exercises to elevate your welding prowess:
- Vertical Uphill Welding: Work against gravity by welding vertically upwards. This requires precise heat control to avoid sagging or undercutting.
- Out-of-Position Welding: Challenge your adaptability by welding in various positions, such as overhead or horizontal. This hones your ability to create strong welds, regardless of orientation.
- Filler Passes on Groove Weld: Perfect your skill in laying multiple filler passes on a groove weld. Focus on bead placement accuracy and proper tie-in to previous passes.
Advanced Tips For Flux Core Wire Feed Welding
Mastering flux core wire feed welding can take your metal fabrication projects to the next level. By embracing advanced techniques and focusing on precision and accuracy, welders can tackle more complex tasks and deliver more robust, cleaner results. Whether dealing with awkward angles or thin materials, the following advanced tips will help refine your flux core welding skills for superior outcomes.
Techniques For Challenging Welds
- Out-of-Position Welding: When welding overhead or vertically, reduce the voltage and wire speed to manage the weld pool better.
- Thick Materials: For thicker metals, utilize a multi-pass technique with interpass cleaning to ensure deep penetration and solid weld integrity.
- Thin Metals: To prevent burn-through on more delicate materials, use a lower wire speed and voltage and a stitching or pulse technique to control heat input.
Joint Considerations: Tailoring the welding approach to the standard type is crucial. For example, T-joints benefit from a stringer or a whipping technique to ensure adequate fusion at both sides of the joint.
Welding in Windy Conditions: Use a wind block or adjust your welding technique if working outdoors to prevent the flux from being blown away, which could jeopardize the weld’s protection and quality.
Tips For Improving Precision And Accuracy
- Wire Selection: Choose the correct wire diameter and type for the job. Smaller diameters can be great for detailed work, while larger wires may fill bigger joints more efficiently.
- Steady Hand: Practice maintaining a steady hand and consistent travel speed to ensure uniform weld beads and penetration.
- Machine Settings: Regularly check and finetune your welder settings based on results and material feedback.
- Cleanliness: Always clean the workpiece thoroughly before beginning a weld, as dirt or rust can impede the weld quality.
- Visual Inspection: Inspect the weld as you go, adjusting techniques to correct inconsistencies.
Work to enhance muscle memory through repetition can significantly contribute to smoother, more precise welds. Using jigs or clamps to hold pieces steady and ensure accurate welds on fixed positions is also beneficial.
Lastly, remember that practice makes perfect. Whether experimenting with different angles or tackling a variety of materials, time spent honing these advanced techniques will pay off in your welding projects.
Frequently Asked Questions On How To Weld With Flux Core Wire Feed Welder
What Is Flux Core Wire Feed Welding?
Flux core wire feed welding is a process that uses a continuously fed wire with a flux core that burns to protect the weld pool from contamination. This method doesn’t require a shielding gas, making it suitable for outdoor work.
Can You Weld Thick Metal With Flux Core?
Yes, you can weld thick metals using flux core wire. It is highly effective for thick materials because of its deep penetration. Proper technique and the correct settings are crucial for successfully welding thicker metals.
How do you set up a flux core welder?
To set up a flux core welder, insert the wire spool, adjust the tension, and thread the wire through the feed mechanism. Set the power and wire feed speed according to the metal thickness you will be welding.
What Safety Gear Do You Need For Flux Core Welding?
The safety gear for flux core welding includes a helmet with proper shade, fire-resistant clothing, gloves, and boots. Also, use earmuffs and a respirator for extra protection from noise and fumes.
Conclusion
Mastering the use of a flux core wire feed welder is within reach. With practice, you’ll navigate its nuances confidently. Enjoy creating solid and durable welds on your projects. Always prioritize safety and refine your technique. Embrace the journey to becoming a skilled welder.
Your efforts will surely pay off.
1 thought on “How to Weld With Flux Core Wire Feed Welder: Master Tips”
